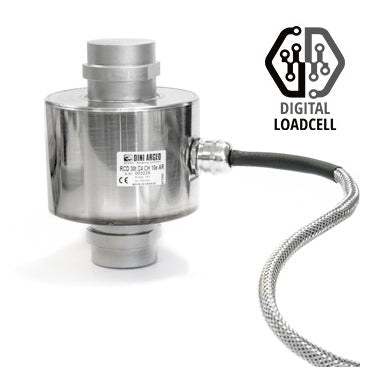

"RCD" SERIES COLUMN LOAD CELLS

Gravitation Ltd

€590,00
SKU: "RCD" SERIES Group-1

Click here for specification PDF


 MAIN FEATURES



    • C4 PRECISION CLASS.

    • MANUFACTURED IN STAINLESS STEEL.

    • IP68 PROTECTION.

    • 30.000/40000 kg CAPACITY

    • SOURGE ARRESTERS' EQUIPPED

    • “ANTI RAT” 15 m ARMOURED CABLE.

    • TEST CERTIFICATE AVAILABLE UPON REQUEST.




 TECHNICAL FEATURES



    • 200.000d full load capacity resolution

    • Combined error of Full Scale Output: ± 0,017%

    • Operating temperature range: -20°C/+60°C

    • Power supply voltage from 7,5 to 16 VDC

    • Conversion: 24 bit

    • RS485 connection.

    • Safe overload: 150% F.S.

    • 6-pole armoured cable.





 WIRING CODE



    • Wiring code of the standard cable colours.



      RCD cell connections

      Colour
      Function


      Input

      WHITE
      INPUT +

      BROWN
      INPUT -


      Input signal

      GREY
      A+

      PINK
      B-


      Output signal

      GREEN
      A+

      YELLOW
      B-








 EXTRAS AVAILABLE


    • Assembly kit.
