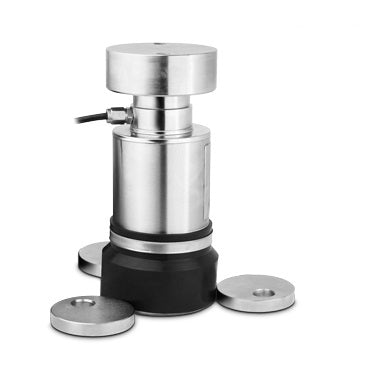

"RCPT" ANALOG LOAD CELL SERIES
"RCPT" ANALOG LOAD CELL SERIES
"RCPT" ANALOG LOAD CELL SERIES

"RCPT" ANALOG LOAD CELL SERIES

Gravitation Ltd SKU: "RCPT" Group-1

POA

Pay in 4 interest-free installments for orders over €50.00 with
Enquire Now
Collection Available
All equipment can be collected in person from our HQ
Get Directions
Description Features Delivery Returns
Click here to view specifications PDF




 TECHNICAL FEATURES



    • Minimum load cell verification interval: Vmin = EMax / 10.000

    • Maximum number of load cell divisions: nLC = 3000 (C3)

    • Sensitivity: 2mV/V +/- 0,1%

    • Temperature effect on full scale: 0,002% /°C

    • Temperature effect on zero: 0,002% /°C

    • Compensated Temperature Range: -10°C/+40°C

    • Operating Temperature Range: -30°C/+70°C

    • Creep error after 30 minutes: 0,02% F.S.

    • Excitation voltage from 5 to 15 VDC

    • Input Resistance: 700 ± 20 Ohm

    • Output Resistance: 703 ± 7 Ohm

    • Zero Balance: +/-1% F.S.

    • Insulation Resistance: >5000 MOhm

    • Safe Overload: >150% F.S.

    • Ultimate Overload: 250% F.S.

    • 4-wire shielded cable, 14m long, 5mm diameter.



























 ATEX Version



    • The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
      ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
      ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
      The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

    • IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.





























      Wiring Code

      Coluor
      Function
      GREEN
      OUTPUT +
      WHITE
      OUTPUT -
      RED
      INPUT +
      BLACK
      INPUT -
