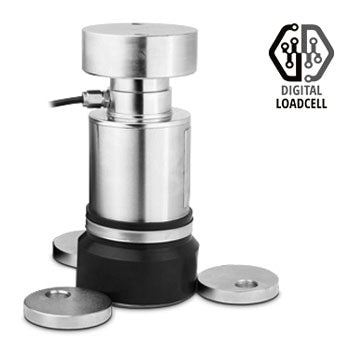

"RCPTD": DIGITAL COLUMN LOAD CELL FOR WEIGHBRIDGES

"RCPTD": DIGITAL COLUMN LOAD CELL FOR WEIGHBRIDGES
"RCPTD": DIGITAL COLUMN LOAD CELL FOR WEIGHBRIDGES

Gravitation Ltd

POA

SKU: "RCPTD" Group-2
Click here to view a specification PDF

MAIN FEATURES



    • C4 PRECISION CLASS.

    • STAINLESS STEEL with SPECIAL ALLOY STEEL BODY; MANUFACTURED WITH LASER SOLDERINGS.

    • IP68 PROTECTION DEGREE.

    • CAPACITY 30000Kg.

    • FITTED WITH SELF-ALIGNED ARTICULATED JOINTS, SELF-CENTERING PLATES AND PROTECTION WASHER.

    • SHIELDED 15m CONNECTION CABLE.

    • TEST CERTIFICATE AVAILABLE UPON REQUEST.

    • COMING SOON: approval with 3590 Touch Screen, for trade approved scales.





























 TECHNICAL FEATURES



    • Resolution for nominal load 60.000d.

    • Combined error on nominal load ± 0,01%.

    • Operating temperature range -10°C/+40°C.

    • Power supply tension from 10 to 18 Vdc.

    • Conversion: 24 bit.

    • Connection RS485.

    • Admissible load: 150% F.S.

    • Shielded cable 4 poles.
