RS232 - RS485 - RS422 - ETHERNET CONVERTERS

RS232 - RS485 - RS422 - ETHERNET CONVERTERS
RS232 - RS485 - RS422 - ETHERNET CONVERTERS RS232 - RS485 - RS422 - ETHERNET CONVERTERS RS232 - RS485 - RS422 - ETHERNET CONVERTERS

Gravitation Ltd

€150,00
SKU: RS232 / RS485 / RS422 / ETHERNET CONVERTERS-1

Click here to view a specification PDF

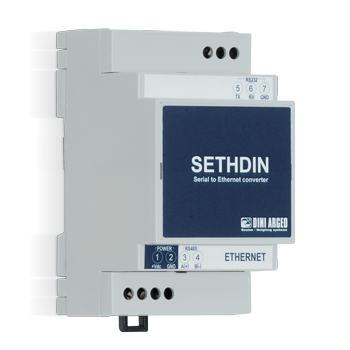

SETHDIN: Technical features



    • ABS case for panel mounting on Omega / DIN bar

    • Dimensions lxpxh (mm): 53 x 58 x 90

    • Power supply: from 12 to 24Vdc

    • Operating temperature: -10°C + 50°C

    • LEDs: Ethernet line presence, communication and diagnostics



























 SETHDIN: ETHERNET interface



    • Protocols: TCP, UDP, DHCP, HTTP, ICMP, uPnP, ARP

    • Connection via standard RJ45 connector

    • Network Interface: 10/100 Base-T

    • Visual indications of 10/100Base-ED G network connection and network activity presence

    • Baud rate: 10-100Mbps



























 SETHDIN: Available conversions



    • RS232 <--> ETHERNET

    • RS485 <--> ETHERNET

    • RS232 <--> RS485

      NOTE:
      In combination with CPWE indicators , it allows one to take advantage of a complete set of specific commands for creating automated systems for software companies, installers and OEMs.



























 C232485: Technical features



    • ABS case for use on the table

    • Dimensions lxpxh (mm): 230 x 140 x 95

    • Power supply: 110-230 Vac

    • Operating temperature: -10°C + 50°C


C232485: RS232 / RS485 converter for counter-top use


C232485: Dimensions in mm
