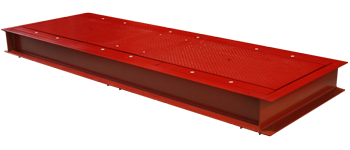

RWSCP: PLATFORM FOR DYNAMIC WEIGHING OF THE VEHICLE AXLES

Gravitation Ltd

€5.900,00
SKU: RWSCP Platform-1

Click here to view our Specification PDF







 TECHNICAL FEATURES



    • Sturdy loading surface in striated sheet steel, sized to withstand any load on the basis of the parameters dictated by the 96/53/EEC directive (maximum load on single axle for the vehicles transiting in Europe).

    • Frame for the containment of RWSCP platform, made up of a single bearing structure, in welded painted steel, that does not require assembly. It facilitates the installation of the scale and simplifies the masonry.

    • Sandblasting and varnishing with bi-component epoxy coating, highly resistant to corrosion.

    • Dimensions of the load surface (lxw): 3 x 0,73 m.

    • 6 compression load cells, C4 class, stainless steel IP68.

    • 10m cable for the connection to the weight indicator.

    • Dust and waterproof wirings and connections, easy to connect and disconnect.

    • Hermetic junction box.

    • Central inspected trapdoors for the ordinary maintenance.

    • Wide range of connectable weight indicators, also functioning with rechargeable battery, which allow to use the platform also without an electrical power supply.

    • Maximum speed of transit: 5km/h.

    • Accuracy 1% for internal use, 2% for legal for trade use (* OIML R134 CERTIFICATION).
      This kind of accuracy is obtainable by following the instructions in the installation manual.


Application scheme for flush floor installation

Example of a weighing station with 3590EBOX
