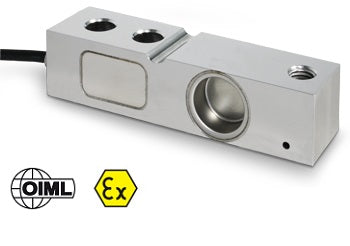

SBK-1KL SERIES

• C3 PRECISION CLASS

• STAINLESS STEEL CONSTRUCTION

• IP68 PROTECTION

• MAX. CAPACITIES FROM 300 TO 2000 kg

• SHIELDED CONNECTION CABLE

• OIML CERTIFICATE AVAILABLE UPON REQUEST

• TEST CERTIFICATE AVAILABLE UPON REQUEST

• Minimum load cell verification interval: Vmin = EMax / 10.000

• Maximum number of verification intervals: nLC = 3000

• Combined error: 0,017% of Full Scale Output (F.S.)

• Full Scale Output: 2mV/V +/- 0.1%

• Temperature effect on zero: 0,0014% /°C

• Temperature effect on full scale output: 0,0014% /°C

• Compensated Temperature Range: -10°C/+40°C

• Operating Temperature Range: -20°C/+60°C

• Creep error after 30 minutes: 0,024% F.S.

• Maximum tolerated excitation voltage: 15 VDC

• Input Resistance: 1100 ± 50 Ohm

• Output Resistance: 1000 ± 10 Ohm

• Insulation Resistance: >5000 MOhm

• Safe Overload: 150% F.S.

• Ultimate Overload: 200% F.S.

• 6-wire shielded cable, 5m long, 5 mm diameter

• The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
  ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
  ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
  The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

• IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.


Dimensions (mm)
