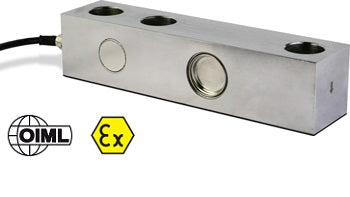

SBX-1KL SERIES SHEAR BEAM LOAD CELLS, 10000kg

Gravitation Ltd SKU: SBX10000-1KL

€330,00 €385,00 Save €55

Pay in 4 interest-free installments for orders over €50.00 with
Collection Available
All equipment can be collected in person from our HQ
Click here for specification PDF



 MAIN FEATURES



    • C3 PRECISION CLASS

    • STAINLESS STEEL CONSTRUCTION WITH LASER WELDING

    • IP68 PROTECTION

    • CAPACITIES 10000 kg

    • SHIELDED CONNECTION CABLE

    • TEST CERTIFICATE AVAILABLE UPON REQUEST





























 TECHNICAL FEATURES



    • Minimum load cell verification interval Vmin = EMax / 10.000

    • Maximum number of verification intervals nLC = 3000

    • Combined error 0,017% of Full Scale Output (F.S.)

    • Full Scale Output 2mV/V +/- 0.5%

    • Temperature effect on zero 0,002% / °C

    • Temperature effect on full scale output 0,002% / °C

    • Compensated Temperature Range -10°C/+50°C

    • Operating Temperature Range -20°C/+60°C

    • Creep error after 30 minutes 0,02% F.S.

    • Maximum tolerated excitation voltage 15 VDC

    • Input Resistance 1100 ± 20 Ohm.

    • Output Resistance 1000 ± 20 Ohm.

    • Insulation Resistance >5000 MOhm

    • Safe Overload 150% F.S.

    • Ultimate Overload 300% F.S.

    • 6-wire shielded cable, 5m long, 5 mm diameter





























 ATEX VERSION



    • The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
      ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
      ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
      The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

    • IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.





















 DIMENSIONS - DECODING STANDARD CABLE



    • NOTE: dimensions in mm




    • Decoding of the standard cable colours






































      Colour


      Function

        --
      SHIELD

      YELLOW
      OUTPUT +

      GREY
      SENSE +

      BROWN
      INPUT +

      WHITE
      OUTPUT -

      GREEN
      INPUT -

      PINK
      SENSE -
