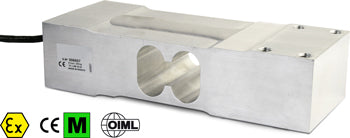

SPBC SERIES SINGLE POINT LOAD CELLS

Gravitation Ltd SKU: SPBC100

€206,00 €240,00 Save €34

Pay in 4 interest-free installments for orders over €50.00 with
Collection Available
All equipment can be collected in person from our HQ
Click here to view specification PDF




MAIN FEATURES



    • C3 PRECISION CLASS

    • OFF CENTER LOAD COMPENSATED

    • MADE IN ALUMINIUM ALLOY

    • IP65 PROTECTION

    • MAX. CAPACITIES FROM 100 TO 630kg

    • FOR PLATFORMS WITH DIMENSIONS UP TO 700 X 700 mm

    • SHIELDED CONNECTION CABLE

    • OIML CERTIFICATE AVAILABLE UPON REQUEST

    • TEST CERTIFICATE AVAILABLE UPON REQUEST





























 TECHNICAL FEATURES



    • Minimum load cell verification interval: Vmin = EMax / 10.000

    • Maximum number of verification intervals: nLC = 3000

    • Full Scale Output: 2mV/V +/- 10%

    • Combined error: 0,017% of Full Scale Output (F.S.)

    • Temperature effect on zero: 0,0028% /°C

    • Temperature effect on full scale output: 0,0014% /°C

    • Compensated Temperature Range: -10°C/+40°C

    • Operating Temperature Range: -20°C/+60°C

    • Creep error after 30 minutes: 0,025% F.S.

    • Maximum tolerated excitation voltage: 15 VDC

    • Input Resistance: 410 ± 10 Ohm

    • Output Resistance: 350 ± 5 Ohm

    • Zero Balance: +/-10% F.S.

    • Insulation Resistance: >1000 MOhm

    • Safe Overload: 150% F.S.

    • Ultimate Overload: 200% F.S.

    • Nominal displacement: < 1mm

    • SPBC 6-wire shielded cable, 3m long, 5mm diameter





























 ATEX Version



    • The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
      ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
      ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
      The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

    • IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.
