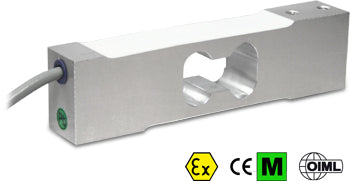

SPG SERIES C3 CLASS

Gravitation Ltd

€65,00
SKU: SPG SERIES C3 CLASS Group-1

Click here for a specification PDF



MAIN FEATURES



    • C3 PRECISION CLASS

    • OFF CENTER LOAD COMPENSATED

    • ALUMINIUM ALLOY CONSTRUCTION

    • IP67 PROTECTION

    • MAX. CAPACITIES FROM 10 TO 200 kg

    • FOR PLATFORMS WITH DIMENSIONS UP TO 600 X 600 mm

    • SHIELDED CONNECTION CABLE

    • OIML CERTIFICATE AVAILABLE UPON REQUEST

    • TEST CERTIFICATE AVAILABLE UPON REQUEST





























 TECHNICAL FEATURES



    • Minimum load cell verification interval: Vmin = EMax / 15.000

    • Maximum number of verification intervals: nLC = 3000

    • Sensitivity: 2mV/V ± 10%

    • Combined error: 0,03% of Full Span (F.S.)

    • Temperature effect on zero: 0,01% FS/10K

    • Temperature effect on Full Span: 0,001% FS/10K

    • Compensated Temperature Range: -10°C/+40°C

    • Operating Temperature Range: -10°C/+50°C

    • Creep at nominal load in 30 minutes: 0,01% F.S.

    • Maximum excitation voltage without damage: 15 Vdc

    • Input Resistance: 300..500 Ohm

    • Output Resistance: 300..500 Ohm

    • Zero Balance: 0 ± 0,1% F.S.

    • Insulation Resistance: >2000 MOhm

    • Mechanical limit load in service: 150% F.S.

    • Destructive load: 300% F.S.

    • Deflection at nominal load <0,3mm

    • 6-wire shielded cable, 3m long, 4,7mm diameter





























 ATEX Version



    • The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
      ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
      ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
      The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

    • IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.
