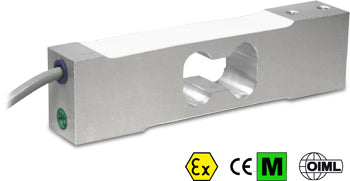

SPG SERIES SINGLE POINT LOAD CELLS

Gravitation Ltd

€115,00
SKU: SPG SERIES Group-1

Click here to view specification PDF



 MAIN FEATURES



    • C6 PRECISION CLASS

    • OFF CENTER LOAD COMPENSATED

    • ALUMINIUM ALLOY CONSTRUCTION

    • IP67 PROTECTION

    • MAX. CAPACITIES FROM 7 TO 36 kg

    • FOR PLATFORMS WITH DIMENSIONS UP TO 450 X 450 mm

    • SHIELDED CONNECTION CABLE

    • OIML CERTIFICATE AVAILABLE UPON REQUEST

    • TEST CERTIFICATE AVAILABLE UPON REQUEST





























 TECHNICAL FEATURES



    • Minimum load cell verification interval: Vmin = EMax / 20.000

    • Maximum number of verification intervals: nLC = 6000

    • Sensitivity: 2mV/V ± 10%

    • Combined error: 0,03% of Full Span (F.S.)

    • Temperature effect on zero: 0,01% FS/10K

    • Temperature effect on Full Span: 0,001% FS/10K

    • Compensated Temperature Range: -10°C/+40°C

    • Operating Temperature Range: -10°C/+50°C

    • Creep at nominal load in 30 minutes: 0,01% F.S.

    • Maximum excitation voltage without damage: 15 Vdc

    • Input Resistance: 300..500 Ohm

    • Output Resistance: 300..500 Ohm

    • Zero Balance: 0 ± 0,1% F.S.

    • Insulation Resistance: >2000 MOhm

    • Mechanical limit load in service: 150% F.S.

    • Destructive load: 300% F.S.

    • Deflection at nominal load <0,3mm

    • 6-wire shielded cable, 3m long, 4,7mm diameter





























 ATEX Version



    • The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
      ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
      ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
      The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

    • IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.





Dimensions (mm)











































Wiring Code

Colour
Function

YELLOW
SHIELD

WHITE
OUTPUT +

GREEN
SENSE +

BLUE
INPUT +

RED
OUTPUT -

GREY
SENSE -

BLACK
INPUT -
