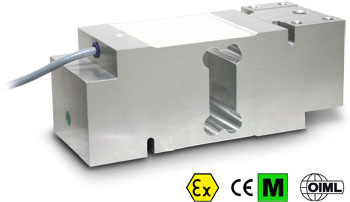

SPN SERIES SINGLE POINT LOAD CELLS
SPN SERIES SINGLE POINT LOAD CELLS
SPN SERIES SINGLE POINT LOAD CELLS

SPN SERIES SINGLE POINT LOAD CELLS

Gravitation Ltd SKU: SPN300

€175,00 €205,00 Save €30

Pay in 4 interest-free installments for orders over €50.00 with
Collection Available
All equipment can be collected in person from our HQ
Get Directions
Description Features Delivery Returns
Click here for specification PDF



MAIN FEATURES



    • C3 PRECISION CLASS

    • OFF CENTER LOAD COMPENSATED

    • ALUMINIUM ALLOY CONSTRUCTION

    • IP67 PROTECTION

    • MAX. CAPACITIES FROM 300 TO 750 kg

    • FOR PLATFORMS WITH DIMENSIONS UP TO 800 X 800 mm

    • SHIELDED CONNECTION CABLE

    • OIML CERTIFICATE AVAILABLE UPON REQUEST

    • TEST CERTIFICATE AVAILABLE UPON REQUEST



























 TECHNICAL FEATURES



    • Minimum load cell verification interval: Vmin = EMax / 15.000

    • Maximum number of verification intervals: nLC = 3000

    • Sensitivity: 2mV/V ± 10%

    • Temperature effect on zero: 0,01% FS/10K

    • Temperature effect on Full Span: 0,001% FS/10K

    • Compensated Temperature Range: -10°C/+40°C

    • Operating Temperature Range: -10°C/+50°C

    • Creep at nominal load in 30 minutes: 0,01% F.S.

    • Maximum excitation voltage without damage: 15 Vdc

    • Input Resistance: 300..500 Ohm

    • Output Resistance: 300..500 Ohm

    • Insulation Resistance: >2000 MOhm

    • Mechanical limit load in service: 150% F.S.

    • Destructive load: 300% F.S.

    • Deflection at nominal load: <0,5mm

    • 6-wire shielded cable, 3m long, 5mm diameter



























 ATEX Version



    • The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
      ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
      ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
      The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

    • IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.









Dimensions (mm)











































Wiring Code
Colour
Function
YELLOW
SHIELD
WHITE
OUTPUT +
GREEN
SENSE +
BLUE
INPUT +
RED
OUTPUT -
GREY
SENSE -
BLACK
INPUT -
