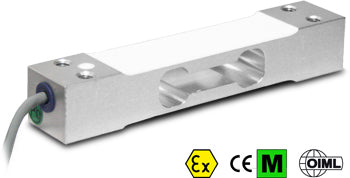

SPO SERIES SINGLE POINT LOAD CELLS

Gravitation Ltd

€50,00
SKU: SPO SERIES Group-1

Click here to view specification PDF



MAIN FEATURES



    • C3 PRECISION CLASS

    • OFF CENTER LOAD COMPENSATED

    • ALUMINIUM ALLOY CONSTRUCTION

    • IP67 PROTECTION

    • MAX. CAPACITIES FROM 3 TO 40 kg

    • FOR PLATFORMS WITH DIMENSIONS UP TO 300 X 300 mm

    • SHIELDED CONNECTION CABLE

    • OIML AND TEST CERTIFICATES AVAILABLE UPON REQUEST





























 TECHNICAL FEATURES



    • Minimum load cell verification interval: Vmin = EMax/15.000

    • Maximum number of verification intervals: nLC = 3000

    • Full Scale Output: 2mV/V +/- 10%

    • Temperature effect on zero: 0,01% FS/10K

    • Temperature effect on full scale output: 0,001%FS /10K

    • Compensated Temperature Range: -10°C/+40°C

    • Operating Temperature Range: -10°C/+50°C

    • Creep error after 30 minutes: 0,01% F.S

    • Maximum tolerated excitation voltage: 15 VDC

    • Input Resistance: 300..500 Ohm

    • Output Resistance: 300..500 Ohm

    • Insulation Resistance: >2000 MOhm

    • Safe Overload: 150% F.S.

    • Ultimate Overload: 300% F.S.

    • 4-wire shielded cable, 40cm long, 3,2mm diameter





























 ATEX Version



    • The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
      ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
      ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
      The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

    • IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.




Dimensions in mm

































Wiring Code


Color


Function

YELLOW
SHIELD

WHITE
OUTPUT +

BLUE
INPUT +

RED
OUTPUT -

BLA
INPUT -
