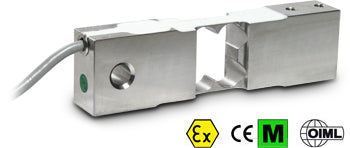

SPSW SERIES SINGLE POINT STAINLESS STEEL LOAD CELLS

Gravitation Ltd

€260,00
SKU: SPSW SERIES Group-1

Click here to view specification PDF


 MAIN FEATURES



    • C3 PRECISION CLASS

    • OFF CENTER LOAD COMPENSATED

    • MADE IN 17-4 PH STAINLESS STEEL

    • IP67 PROTECTION

    • MAX. CAPACITIES FROM 7.5 TO 100 kg

    • FOR PLATFORMS WITH DIMENSIONS UP TO 500 X 400 mm

    • SHIELDED CONNECTION CABLE

    • TEST CERTIFICATE AVAILABLE UPON REQUEST





























 TECHNICAL FEATURES



    • Minimum load cell verification interval: Vmin = EMax / 10.000

    • Maximum number of verification intervals: nLC = 3000

    • Full Scale Output: 2mV/V +/- 10%

    • Temperature effect on zero: 0,01% FS/10K

    • Temperature effect on full scale output: 0,001% FS/10K

    • Compensated Temperature Range: -10°C/+40°C

    • Operating Temperature Range: -10°C/+50°C

    • Creep at nominal load in 30 minutes: ± 0,01% F.S.

    • Maximum tolerated excitation voltage: 15 VDC

    • Input Resistance: 380 ± 15 Ohm

    • Output Resistance: 359 ± 5 Ohm

    • Insulation Resistance (100V) >1000 MOhm

    • Safe Overload: 300% F.S.

    • Ultimate Overload: 300% F.S.

    • Nominal displacement: < 0.5 mm

    • 6-wire shielded cable, 3m long, 5mm diameter





























 ATEX Version



    • The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
      ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
      ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
      The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

    • IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.


Dimensions in mm








































Wiring Code

Colour
Function

WHITE
OUTPUT +

GREEN
SENSE +

BLUE
INPUT +

RED
OUTPUT -

BLACK
INPUT -

GREY
SENSE -
