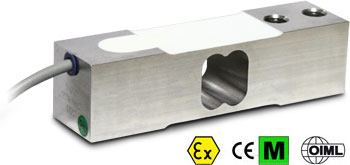

SPSX SERIES SINGLE POINT STAINLESS STEEL LOAD CELLS

SPSX SERIES SINGLE POINT STAINLESS STEEL LOAD CELLS SALE
SPSX SERIES SINGLE POINT STAINLESS STEEL LOAD CELLS SPSX SERIES SINGLE POINT STAINLESS STEEL LOAD CELLS

Gravitation Ltd

€350,00 €410,00
SKU: SPSX100

Click here to view specification PDF


 MAIN FEATURES



    • C3 PRECISION CLASS

    • OFF CENTER LOAD COMPENSATED

    • MADE IN 17-4 PH STAINLESS STEEL

    • IP67 PROTECTION

    • MAX. CAPACITIES FROM 100 TO 500 kg

    • FOR PLATFORMS WITH DIMENSIONS UP TO 600 X 800 mm

    • SHIELDED CONNECTION CABLE

    • TEST CERTIFICATE AVAILABLE UPON REQUEST



























 TECHNICAL FEATURES



    • Minimum load cell verification interval: Vmin = EMax / 15.000

    • Maximum number of verification intervals: nLC = 3000

    • Full Scale Output: 2mV/V +/- 10%

    • Temperature effect on zero: 0,01% FS/10K

    • Temperature effect on full scale output: 0,001% FS/10K

    • Compensated Temperature Range: -10°C/+40°C

    • Operating Temperature Range: -10°C/+50°C

    • Creep at nominal load in 30 minutes: ± 0,01% F.S.

    • Maximum tolerated excitation voltage: 15 VDC

    • Input Resistance: 390 ± 15 Ohm

    • Output Resistance: 359 ± 5 Ohm

    • Insulation Resistance (100V) >1000 MOhm

    • Safe Overload: 300% F.S.

    • Ultimate Overload: 300% F.S.

    • Nominal displacement: < 0.5 mm

    • 6-wire shielded cable, 3m long, 5mm diameter



























 ATEX Version



    • The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
      ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
      ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
      The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

    • IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.























Code Dimensions in mm
A
SPSX300 M10
SPSX500 M12







































Wiring Code
Colour
Function
WHITE
OUTPUT +
GREEN
SENSE +
BLUE
INPUT +
RED
OUTPUT -
BLACK
INPUT -
GREY
SENSE -
