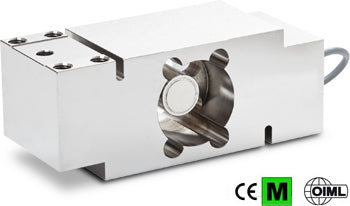

SPSZ SERIES SINGLE POINT STAINLESS STEEL LOAD CELLS

Gravitation Ltd SKU: SPSZ500

€1.020,00 €1.342,00 Save €322

Pay in 4 interest-free installments for orders over €50.00 with Learn More
Specification PDF
View Specification Sheet
Free Delivery on Orders Over €100
Ships by
Collection Available
All equipment can be collected in person from our HQ
  • Description
  • Features
  • Delivery
Click here for specification PDF




 MAIN FEATURES



    • C3 PRECISION CLASS

    • OFF CENTER LOAD COMPENSATED

    • MADE IN 17-4 PH STAINLESS STEEL

    • IP68 PROTECTION

    • MAX. CAPACITIES FROM 500 TO 1000 kg

    • FOR PLATFORMS WITH DIMENSIONS UP TO 800 X 800 mm

    • SHIELDED CONNECTION CABLE

    • TEST CERTIFICATE AVAILABLE UPON REQUEST





























 TECHNICAL FEATURES



    • Minimum load cell verification interval: Vmin = EMax / 10.000

    • Maximum number of verification intervals: nLC = 3000

    • Full Scale Output: 2mV/V +/- 10%

    • Temperature effect on zero: 0,01% FS/10K

    • Temperature effect on full scale output: 0,001% FS/10K

    • Compensated Temperature Range: -10°C/+40°C

    • Operating Temperature Range: -10°C/+50°C

    • Creep at nominal load in 30 minutes: ± 0,01% F.S.

    • Maximum tolerated excitation voltage: 15 VDC

    • Input Resistance: 380 ± 15 Ohm

    • Output Resistance: 350 ± 10 Ohm

    • Insulation Resistance (100V) >2000 MOhm

    • Safe Overload: 300% F.S.

    • Ultimate Overload: 300% F.S.

    • Nominal displacement: < 0.5 mm

    • 6-wire shielded cable, 3m long, 5mm diameter


Dimensions in mm








































Wiring Code

Colour
Function

WHITE
OUTPUT +

GREEN
SENSE +

BLUE
INPUT +

RED
OUTPUT -

BLACK
INPUT -

GREY
SENSE -
