STFC SERIES TENSION LOAD CELLS

Gravitation Ltd

POA

SKU: STFC SERIES Group



















 MAIN FEATURES



  • C3 PRECISION CLASS

  • NICKEL-PLATED STEEL CONSTRUCTION

  • IP67 PROTECTION LEVEL

  • MAX. CAPACITIES FROM 2000 TO 10000 kg

  • SHIELDED CONNECTION CABLE

  • TEST CERTIFICATE AVAILABLE UPON REQUEST





























 TECHNICAL FEATURES



  • Minimum load cell verification interval: Vmin = EMax / 10.000

  • Maximum number of verification intervals: nLC = 3000

  • Combined error: 0,02% of Full Scale Output (F.S.)

  • Full Scale Output: 2mV/V +/- 0,1%

  • Temperature effect on zero: 0,0013% /°C

  • Temperature effect on full scale output: 0,0014% /°C

  • Compensated Temperature Range: –10°C/+40°C

  • Operating Temperature Range: -20°C/+60°C

  • Creep error after 4 hours: 0,03% F.S.

  • Maximum tolerated excitation voltage: 10 VDC

  • Input Resistance: 1100 Ohm

  • Output Resistance: 1000 Ohm

  • Zero balance: +/-1% F.S.

  • Insulation Resistance: >5000 MOhm

  • Safe Overload: 150% F.S.

  • Ultimate Overload: 300% F.S.

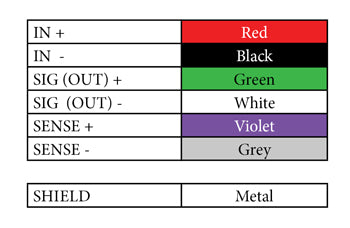

  • 4-wire shielded cable, 5m long, 5mm diameter





















 ATEX VERSION



  • The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
    ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
    ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
    The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

  • IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.
