"T" SERIES - SINGLE CELL PLATFORMS

Gravitation Ltd

€290,00
SKU: "T" SERIES Group-1

Click here to view a specification PDF







 MAIN FEATURES



    • Functions with an approved aluminium “single point” load cell according to OIML R60 standards with protection against dust and water splashes according to IP65 standards (350 Ohm input resistance).

    • Steel tubular structure, oven-fire painted blue, with adjustable resting feet and level.

    • Fitted with satined AISI 304 stainless steel loading surface.

    • Up to 15 Vdc power supply.

    • Shielded 3m connection cable with connectors for connection to the indicator.





























 OPTIONS FOR ATEX VERSION



    • CCATEX: ATEX certificate for each load cell

    • DCATEX2GD: Declaration of ATEX conformity of whole PLATFORM + ATEX 2GD DINI ARGEO INDICATOR

    • DCATEX3GD: Declaration of ATEX conformity of whole PLATFORM + ATEX 3GD DINI ARGEO INDICATOR





























 SUPPORT BRACKETS AND COLUMNS



    • Example of use with bracket, attached column or floor column.

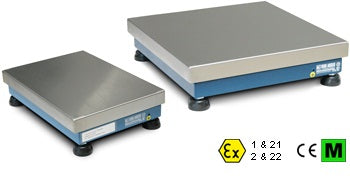

T" series - Single cell platforms





"T" series platforms: dimensions (see the version table)




























 AVAILABLE UPON PRICE ESTIMATE



    • Belt and roller units to be applied on the loading surface

    • Special sizes and capacities
