Functions with an approved “single point” STAINLESS STEELload cell according to OIML R60 standards with protection against dust and water splashes according to IP67 standards.
Structure with tubulars, mechanics, trinkets and satined steel loading surface in AISI304 stainless steel.
Fitted with adjustable STAINLESS steel feet with plastic resting surface and level.
Up to 15 Vdc power supply.
Shielded 3m connection cable with connectors for connection to the indicator.
OPTIONS FOR ATEX VERSION
CCATEX: ATEX certificate for each load cell.
DCATEXMECH: Declaration of conformity of the whole system composed of PLATFORM + JUNCTION BOX + LOAD CELLS (only if the platform is ordered without the weight indicator; otherwise, refer to the certifications available for the indicator to which it will be connected).
SUPPORT BRACKETS AND COLUMNS
Example of use with bracket, attached column or floor column.

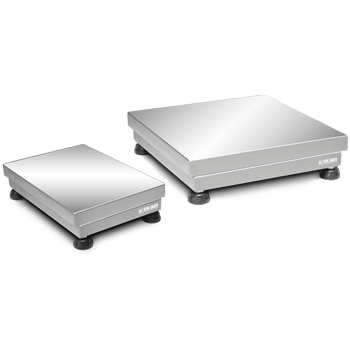

"TE" series - Single cell stainless steel platforms
"TE" series platforms: dimensions (see the version table)
