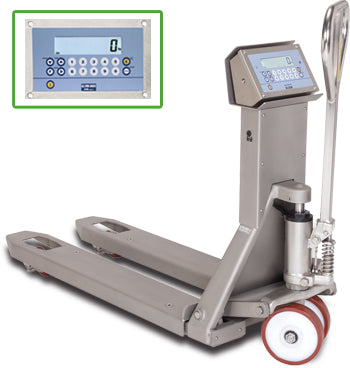

TPWI SERIES PALLET TRUCK SCALE

Gravitation Ltd

€4.450,00
SKU: TPWI Series-1

Click here to view our Specification PDF







 MAIN FEATURES



    • Maximum lifting capacity: 2000 kg.

    • Accuracy: +/- 0.1% of the maximum capacity in the versions for internal use.

    • Accuracy: +/- 0.05% of the maximum capacity in the "M" approved versions.

    • Fork dimensions 1182 x 550 x 80 mm.

    • Weighs about 135 kg.

    • Bearing structure entirely in extra thick STAINLESS steel.

    • Lifting pump in STAINLESS steel.

    • Vulkollan steering wheels and double loading rollers.

    • 4 IP68 stainless steel shear beam load cells.

    • Weight indicator with waterproof IP68 STAINLESS STEEL case, easy to clean and resistant to harsh and corrosive environments; large 25mm high contrast LCD display, clearly visible also in poor lighting conditions, and membrane waterproof keypad, with 17 numerical/functional keys.

    • Calibration and Set-Up configurable from keyboard or from PC with DINITOOLS.

    • Power supply through built-in rechargeable battery.

    • 50-hour approximate operating time or one month with the typical non continuous use, thanks to its auto switch-off function.

    • Programmable auto power saving function.

    • Low Battery Warning.

    • Equipped with 230Vac 50 Hz battery charger (recharging time is about 8 hours).

    • Bi-directional RS232/C port for connection to printer.

    • Bi-directional RS232/C port for PC, radio modem, or portable terminal.

    • IR input for managing the remote control





























 MAIN FUNCTIONS



    • Zeroing, Tare, Printing, numeric IDs

    • High Resolution Weighing x 10

    • Net/Gross or lb/kg conversion

    • Accumulation

    • Formula weighing

    • +/- Checkweighing

    • Percentage weighing

    • Counting (Max. resolution of 1.500.000 divisions)

    • Hold and Peak

    • Set Point Control (with optional interface)
























 AVAILABLE UPON PRICE ESTIMATE



    • Special steering wheels.

    • 680 mm fork width.

    • Special fork length from 850 to 1500 mm.

    • Special capacity e/o divisions.

    • High resolution.
