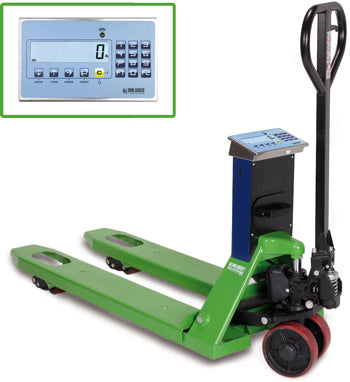

TPWLK "LOGISTIC" SERIES PALLET TRUCK SCALE

TPWLK "LOGISTIC" SERIES PALLET TRUCK SCALE
TPWLK "LOGISTIC" SERIES PALLET TRUCK SCALE

Gravitation Ltd

€1.650,00
SKU: TPWLKM-6 Verified

Click here to view our Specification PDF







MAIN FEATURES



    • Maximum lifting capacity: 2000 kg.

    • Accuracy: +/- 0.1% of the maximum capacity in the versions for internal use.

    • Accuracy: +/- 0.05% of the maximum capacity in the "M" approved versions.

    • Fork dimensions 1150 x 550 x 85 mm.

    • Weighs about 125 kg.

    • Structure in extra thick steel and oven-fire painted mechanics.

    • Steering wheels and double loading poliurethane rollers.

    • 4 stainless steel IP68 load cells for the legal for trade use version, aluminium IP54 load cells for the internal use version.

    • Weight indicator in IP65 STAINLESS STEEL waterproof case, easy to clean and resistant to harsh and corrosive environments; large 25mm LCD displayhigh contrast digits, which are clearly visible even in poor lighting conditions and with low temperatures, and waterproof membrane keyboard, with 17 functional keys.

    • Configuration, calibration and diagnostics from keyboard or PC with DINITOOLS.

    • Power supply through extractable rechargeable battery mounted on the pallet truck column.

    • The operating time is of about 80 hours of continuous use or one month with the tipycal non continuous use, thanks to its auto switch-off function.

    • Programmable auto power saving function.

    • Battery level indication.

    • Equipped with 230Vac 50 Hz battery charger (recharging time is about 8 hours).

    • Configurable RS232/C bidirectional port for connection to a printer, with customisable print format.

    • Configurable RS232/C bidirectional port for PC, modem radio or portable terminal.

    • IR input for remote control management.

    • Fitted with thermal printer in the TPWLKP and TPWLKPM versions, with Date&Time card.



























 MAIN FUNCTIONS



    • Zeroing, Tare, Printing

    • High Resolution Weighing x 10

    • Net/Gross or lb/kg conversion

    • Accumulation

    • Formulation

    • +/- Checkweighing

    • Percentage weighing

    • Counting(Max. resolution of 1.500.000 divisions)

    • Hold and Peak

    • Set Point Control (with optional interface





















AVAILABLE UPON PRICE ESTIMATE



    • Special steering wheels.

    • 680 mm fork width.

    • Special fork length from 850 to 1500 mm.

    • Special capacity e/o divisions.

    • High resolution.
