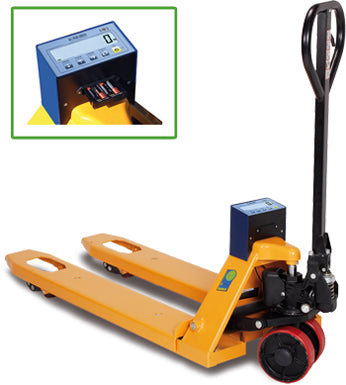

TPWN09 "NETWORK" SERIES PALLET TRUCK SCALE

Gravitation Ltd

€960,00
SKU: TPWN09 "NETWORK" Series

Click here to view our Specification PDF







MAIN FEATURES



    • Maximum lifting capacity: 2000 kg.

    • Accuracy: +/- 0.2% of the maximum capacity.

    • Fork dimensions: 1150 x 550 x 85 mm.

    • Weighs about 125 kg.

    • Structure in extra thick steel and oven-fire painted mechanics.

    • Steering wheels and double loading rollers with a polyurethane coating.

    • 4 aluminium shear-beam load cells.

    • Weight indicator with 6 25mm digits on a backlit LCD display, which are clearly visible even in poor lighting conditions, and waterproof keyboard, with 5 functional keys.

    • Configuration, calibration and diagnostics from keyboard or PC with DINITOOLS.

    • Power supply through 4 AA batteries, which may also be rechargeable.

    • The operating time is of about 40 hours of continuous use, or one month with the typical non continuous use, thanks to its auto switch-off function.

    • Programmable auto power saving function.

    • Battery level indication.

    • IP input for managing the remote control.





























 MAIN FUNCTIONS



    • Zeroing, Tare

    • High Resolution Weighing x 10

    • Net/Gross or lb/kg conversion

    • Totalization

    • Formula weighing

    • +/- checkweighing

    • Percentage weighing

    • Counting





























 I/O SECTION



    • Infra-red port for remote control on handle-bar (the remote control is optional).
