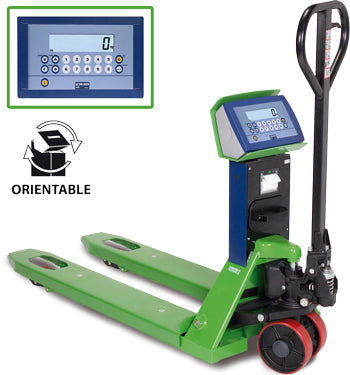

TPWP "PROFESSIONAL" SERIES PALLET TRUCK SCALE

TPWP "PROFESSIONAL" SERIES PALLET TRUCK SCALE
TPWP "PROFESSIONAL" SERIES PALLET TRUCK SCALE

Gravitation Ltd

€2.250,00
SKU: TPWP Series-1

Click here to view our Specification PDF








 MAIN FEATURES



    • Maximum lifting capacity: 2500 kg.

    • Accuracy: +/- 0.05% of the maximum capacity.

    • Fork dimensions 1150 x 550 x 85 mm.

    • Weighs about 125 kg.

    • Bearing structure in extra thick sheet steel and oven-fire painted interior construction.

    • Standard fitted swivelling column head.

    • Steering wheels and double loading rollers with a poliurethane coating.

    • 4 stainless steel IP68 load cells.

    • Indicator with easy to clean ABS waterproof IP65 caseenclosure built to withstand humid and dusty environments; large LCD display with 25 mm high contrast digits, which are clearly visible even in poor lighting conditions; 17-key numerical/functional membrane waterproof keyboard.

    • Calibration and Set-Up configurable from keyboard or from PC with DINITOOLS.

    • Power supply through built-in extractable rechargeable battery.

    • 60-hour approximate operating time or three months with the typical non continuous use, thanks to its auto switch-off function.

    • Programmable auto power saving function.

    • Low Battery Warning.

    • Equipped with 230Vac 50 Hz battery charger (recharging time is about 8 hours).

    • Bi-directional RS232/C port configurable for connection to printer.

    • Bi-directional RS232/C serial output for radio modem, PC or portable terminal.

    • IR input for managing the remote control.



























 MAIN FUNCTIONS



    • Zeroing, Tare, Printing, numeric IDs

    • High Resolution Weighing x 10

    • Net/Gross or lb/kg conversion

    • Accumulation

    • Formula weighing

    • +/- Checkweighing

    • Percentage weighing

    • Counting (Max. resolution of 1.500.000 divisions),

    • Hold and Peak

    • Set Point Control (with optional interface)





















AVAILABLE UPON PRICE ESTIMATE



    • Special steering wheels.

    • 680 mm fork width.

    • Special fork length from 850 to 1500 mm.

    • Special capacity e/o divisions.

    • High resolution.
