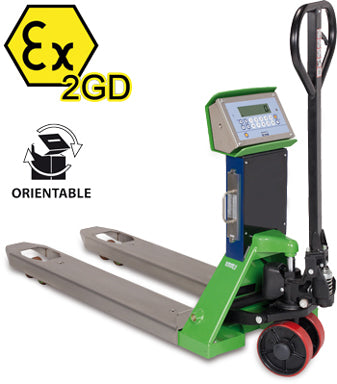

TPWX2GD "HAZARDOUS ZONE" SERIES PALLET TRUCK SCALE ATEX

Gravitation Ltd

€2.650,00
SKU: TPWX2GD Series-1

Click here to view a specification PDF







 MAIN FEATURES



    • Maximum lifting capacity: 2500 kg.

    • Accuracy: +/- 0.05% of the maximum capacity.

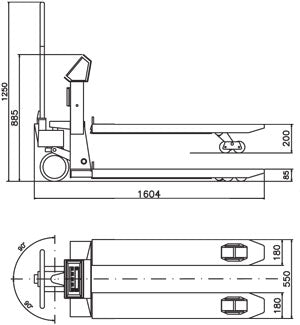

    • Fork dimensions 1150 x 550 x 85 mm.

    • Weighs about 125 kg.

    • Bearing structure in extra thick sheet steel and oven-fire painted interior construction.

    • Standard fitted swivelling column head.

    • Steering wheels and double loading rollers with a poliurethane coating.

    • Atex certified, 4 stainless steel IP68 shear-beam load cells.

    • Indicator with easy to clean satined stainless steel case with IP68 enclosure built to withstand humid and dusty environments; large LCD display 25-mm high contrast digits which are clearly visible even in poor lighting conditions; 17-key numerical/functional membrane waterproof keyboard.

    • Calibration and Set-Up parameters configurable from keyboard.

    • Power supply through extractable battery, rechargeable in safe zone.

    • 150-hour approximate operating time.

    • Equipped with 230Vac 50 Hz battery charger to be recharged in a safe area.





























 MAIN FUNCTIONS



    • Zeroing, Tare

    • High Resolution Weighing x 10

    • Net/Gross or lb/kg conversion

    • Weighs accumulation

    • Formulation

    • Counting

    • Hold





























 AVAILABLE UPON PRICE ESTIMATE



    • 680 mm fork width.

    • Special fork length from 850 to 1500 mm.

    • Special capacity e/o divisions.

    • High resolution.
