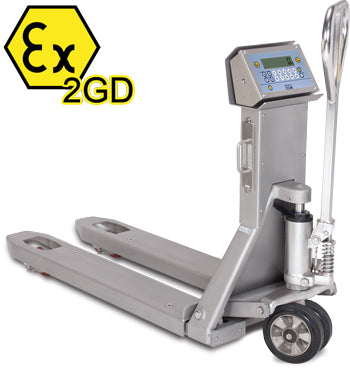

TPWX2GDI "HAZARDOUS ZONE" SERIES STAINLESS STEEL ATEX PALLET TRUCK SCALE

TPWX2GDI "HAZARDOUS ZONE" SERIES STAINLESS STEEL ATEX PALLET TRUCK SCALE
TPWX2GDI "HAZARDOUS ZONE" SERIES STAINLESS STEEL ATEX PALLET TRUCK SCALE

Gravitation Ltd

€5.650,00
SKU: TPWX2GDI

Click here to view a specification PDF







MAIN FEATURES



    • Maximum lifting capacity: 2000 kg.

    • Accuracy: +/- 0.1% of the maximum capacity in the versions for internal use.

    • Accuracy: +/- 0.05% of the maximum capacity in the "M" approved versions.

    • Fork dimensions 1182 x 550 x 80 mm.

    • Weighs about 135 kg.

    • Bearing structure entirely in extra thick sheet steel.

    • Lifting pump in STAINLESS steel.

    • Steering wheels with rubber coating.

    • Double loading rollers with a poliurethane coating.

    • 4 stainless steel IP68 Atex certified shear-beam load cells.

    • Weight indicator with waterproof IP68 STAINLESS STEEL case, easy to clean and resistant to harsh and corrosive environments; large high contrast 25mm LCD display, easily visible also in poor lighting conditions and waterproof membrane keypad, with 17 numerical/functional keys.

    • Calibration and Set-Up parameters configurable from keyboard.

    • Power supply through extractable battery, rechargeable in safe zone.

    • 150-hour approximate operating time.

    • Equipped with 230Vac 50 Hz battery charger to be recharged in a safe area.



























 MAIN FUNCTIONS



    • Zeroing, Tare

    • High Resolution Weighing x 10

    • Net/Gross or lb/kg conversion

    • Weighs accumulation

    • Formulation

    • Counting

    • Hold

AVAILABLE UPON PRICE ESTIMATE


680 mm fork width.
Special fork length from 850 to 1500 mm.
Special capacity e/o divisions.
High resolution.
