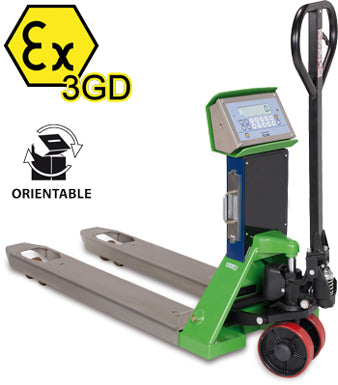

TPWX3GD "HAZARDOUS ZONE" SERIES ATEX PALLET TRUCK SCALE
TPWX3GD "HAZARDOUS ZONE" SERIES ATEX PALLET TRUCK SCALE
TPWX3GD "HAZARDOUS ZONE" SERIES ATEX PALLET TRUCK SCALE

TPWX3GD "HAZARDOUS ZONE" SERIES ATEX PALLET TRUCK SCALE

Gravitation Ltd SKU: TPWX3GD

€2.490,00

Pay in 4 interest-free installments for orders over €50.00 with Learn More
Specification PDF
View Specification Sheet
We Accept:
  • American Express
  • Apple Pay
  • Google Pay
  • Maestro
Free Delivery on Orders Over €100
Ships by
Collection Available
All equipment can be collected in person from our HQ
Get Directions
  • Description
  • Features
  • Delivery
Click here to view a specification PDF







MAIN FEATURES



    • Maximum lifting capacity: 2000Kg.

    • Accuracy: +/- 0.1% of the maximum capacity in the versions for internal use.

    • Accuracy: +/- 0.05% of the maximum capacity in the "M" approved versions.

    • Fork dimensions 1150 x 550 x 85 mm.

    • Weighs about 125 kg.

    • Bearing oven-fire painted structure in extra thick sheet steel.

    • Standard fitted swivelling column head.

    • Steering wheels and double loading rollers with a poliurethane coating.

    • Atex certified, 4 stainless steel IP68 shear-beam load cells.

    • Indicator with easy to clean satined stainless steel case with IP68 enclosure built to withstand humid and dusty environments; large backlit LCD display 25-mm high contrast digits which are clearly visible even in poor lighting conditions; 17-key numerical/functional membrane waterproof keyboard.

    • Calibration and Set-Up parameters configurable from keyboard or PC.

    • Power supply through extractable battery, rechargeable in safe zone.

    • Over 100-hour operating time.

    • Programmable automatic switch-off.

    • Battery level indication.

    • Equipped with 230Vac 50 Hz battery charger to be recharged in a safe area.



























 MAIN FUNCTIONS



    • Zeroing, Tare, Printing (in a safe area only), numeric IDs

    • High Resolution Weighing x 10

    • Net/Gross or lb/kg conversion

    • Accumulation

    • Formula weighing

    • +/- Checkweighing

    • Percentage weighing

    • Counting (Max. resolution of 1.500.000 divisions)

    • Hold and Peak

    • Set Point Control (with optional interface)
























AVAILABLE UPON PRICE ESTIMATE



    • 680 mm fork width.

    • Special fork length from 850 to 1500 mm.

    • Special capacity e/o divisions.

    • High resolution.
