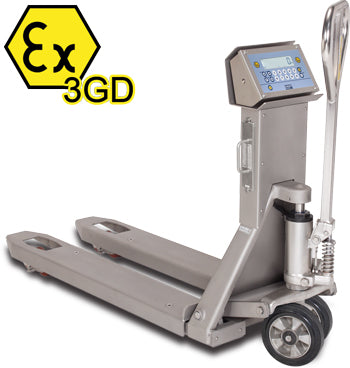

TPWX3GDI "HAZARDOUS ZONE" SERIES STAINLESS STEEL ATEX PALLET TRUCK SCALE

TPWX3GDI "HAZARDOUS ZONE" SERIES STAINLESS STEEL ATEX PALLET TRUCK SCALE
TPWX3GDI "HAZARDOUS ZONE" SERIES STAINLESS STEEL ATEX PALLET TRUCK SCALE

Gravitation Ltd

€4.950,00
SKU: TPW20IEX3GD

Click here to view a specification PDF







MAIN FEATURES



    • Maximum lifting capacity: 2000kg.

    • Accuracy: +/- 0.1% of the maximum capacity in the versions for internal use.

    • Accuracy: +/- 0.05% of the maximum capacity in the "M" approved versions.

    • Fork dimensions 1182 x 550 x 80 mm.

    • Weighs about 135 kg.

    • Bearing structure entirely in extra thick STAINLESS steel.

    • Lifting pump in STAINLESS steel.

    • Steering wheels with rubber coating.

    • Double loading rollers with a poliurethane coating.

    • Four IP68 STAINLESS steel, Atex certified, shear-beam load cells.

    • Weight indicator with waterproof IP68 STAINLESS STEEL case, easy to clean and resistant to harsh and corrosive environments; large high contrast 25mm backlit LCD display, easily visible also in poor lighting conditions and waterproof membrane keypad, with 17 numerical/functional keys.

    • Calibration and Set-Up parameters configurable from keyboard or from PC.

    • Power supply through rechargeable battery, over 100-hour operating time.

    • Low battery warning. Programmable auto switch-off.

    • Equipped with 230Vac 50 Hz battery charger to be recharged in a safe area.



























 MAIN FUNCTIONS



    • Zeroing, Tare, Printing (in a safe area only), numeric IDs

    • High Resolution Weighing x 10

    • Net/Gross or lb/kg conversion

    • Accumulation

    • Formula weighing

    • +/- Checkweighing

    • Percentage weighing

    • Counting (Max. resolution of 1.500.000 divisions)

    • Hold and Peak

    • Set Point Control (with optional interface)





















AVAILABLE UPON PRICE ESTIMATE



    • 680 mm fork width.

    • Special fork length from 850 to 1500 mm.

    • Special capacity e/o divisions.

    • High resolution.
