TRB IP65 STAINLESS STEEL PRECISION SCALES SERIES

Gravitation Ltd SKU: TRB Group-1

€790,00

Pay in 4 interest-free installments for orders over €50.00 with
Collection Available
All equipment can be collected in person from our HQ
Click here to view a specification PDF







 MAIN FEATURES



    • LED display: 7 bright red segments with 7 digits, 15 mm high, for viewing the weight and 6 LEDs for showing the active functions.

    • Waterproof keypad with 18 functional keys.

    • Stainless steel indicator with bracket for mounting on a column or shelf with adjustable angle.

    • Stainless steel structure, mechanics, small parts, and plate.

    • Functions with aluminium "single point" load cell, with anticorrosive treatments.

    • Protection from dust and water splashes according to IP65 standards.

    • Adjustable feet and level.

    • Digital calibration & set-up configurable from keyboard or from PC with DINITOOLS.

    • 3m cable between indicator and platform

    • 12 Vdc power supply with a built in 110-220 Vac power adapter.





























 SELECTABLE FUNCTIONS:



    • Formulation.

    • Horizontal / vertical / in unloading totalization with management of 3 zeroable and printable totals independent from each other (partial total, general total, grand total).

    • +/- tolerance check.

    • Counting.

    • Percentage Weigh.

    • Set point function active on all functioning modes.





























 I/O SECTION:



    • RS232/C or TTL bidirectional output for connection to printer or remote display.

    • Bi-directional RS232/C or RS485 configurable output for PC, PLC and additional remote display.





























 MAIN FUNCTIONS:



    • Zeroing, Gross/Net selection, HR Visualisation x 10.

    • Print and/or data transmission command, function command, on/off.

    • Automatic tare, presettable tare, lock/unlock tare function.

    • Horizontal totalization active on all functioning modes, selectable between automatic and manual; management of a total level

    • Programmable printing from keyboard or from PC of 5 print formats (Print key, Totalization, Partial total, General total, Grand total, First weigh heading); each print format can contain 26 positions which may be simple ASCII codes or preconfigured print blocks (i.e. weigh progressives, gross/tare/net weigh, additional total, date and time, etc.)

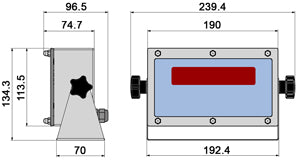

Weight indicator: dimensions in mm



Platform: dimensions in mm
(see the table of available versions)
