UYA 6.5Y Ultra-Microbalance
Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?
If so, learn about the functionality of the ELLIPSIS series of balances:

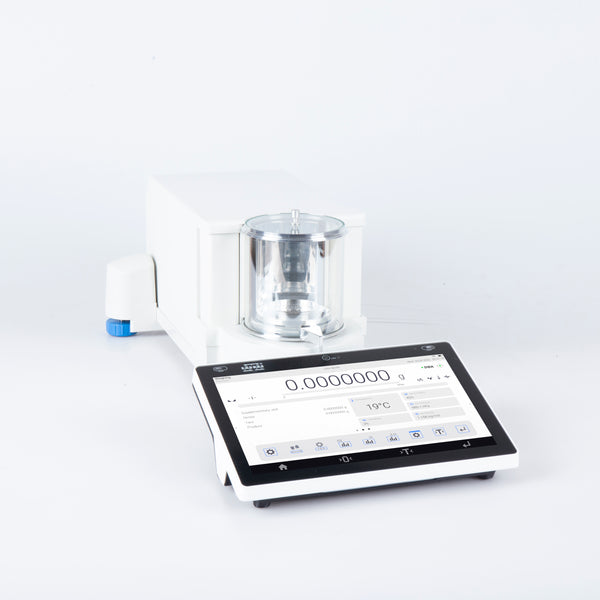

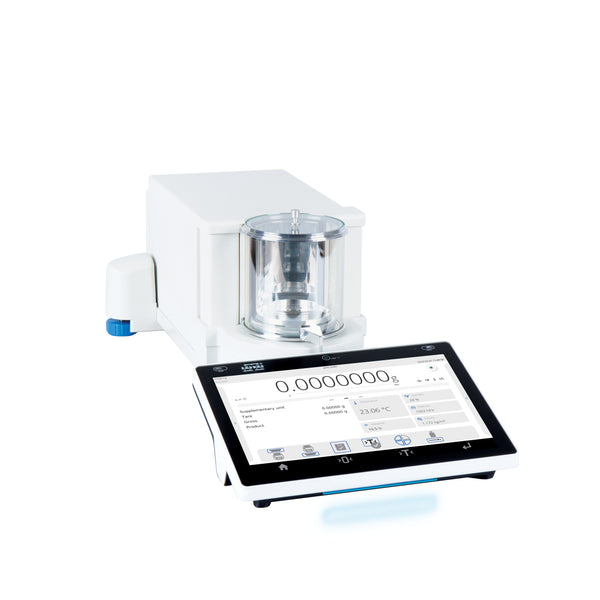

Ultra-Microbalance UYA
The UYA Ultra-Microbalance is designed to meet the demanding requirements for high-precision mass measurement. Each ultra-microbalance has an automatic adjustment that records temperature changes and eliminates indication deviations that result from an unstable working environment. As a result, automatic adjustment improves measurement readability.
The ultra-microbalance consists of two components located in separate housings: a weighing terminal and a precision mechanical measuring system. The two-element design of the ultra-microbalance eliminates the risk of temperature changes and mutual vibration transmission.
Essential equipment for ultra-micro scales

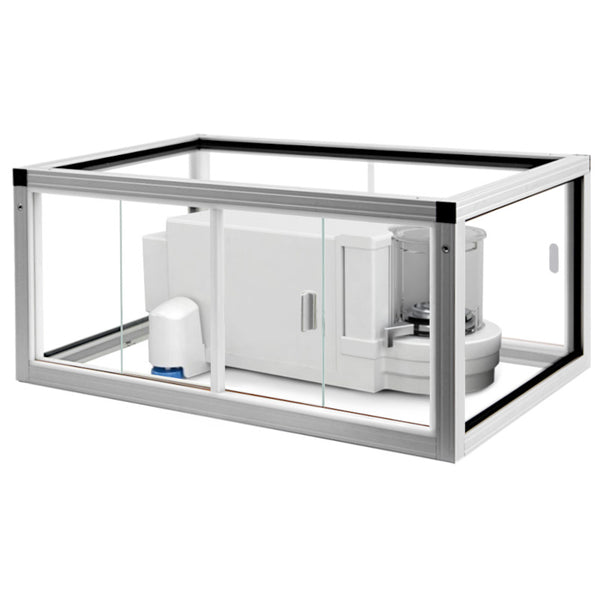

Standard equipment of the ultra-microbalance is an anti-draft chamber, which reduces the influence of air movements and air drafts in weighing rooms on measurement results. The ultra-microbalance is placed inside the chamber, and slidable side doors provide unbounded access to the weighing chamber. All components of the balance are made of glass or aluminum, which eliminates the influence of electrostatic fields.
NOTE: for the correct implementation of the weighing process with ultra-microbalances, the following are required: a properly prepared workspace and proper operation of the balance. It is recommended to use antivibration tables with a granite stabilizing plate for ultra-microbalances.
Functionality of the ELLIPSIS series:

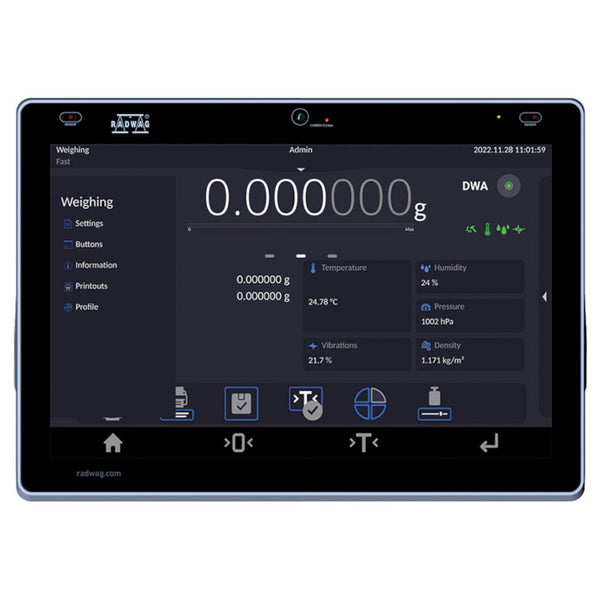

Digital Weighing Auditor
Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

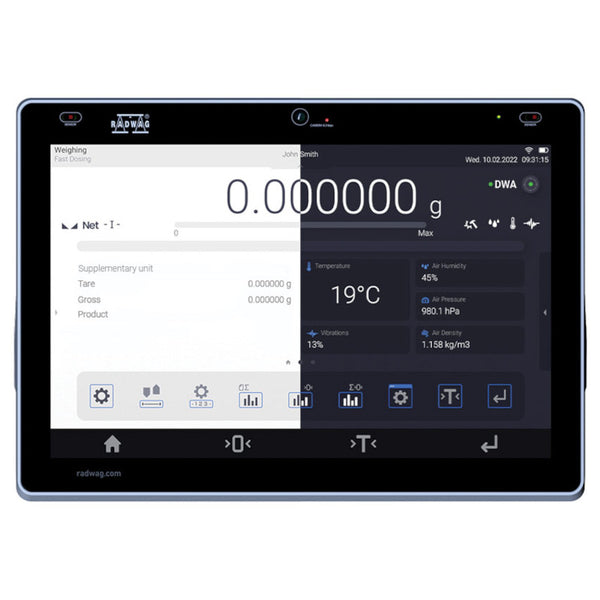

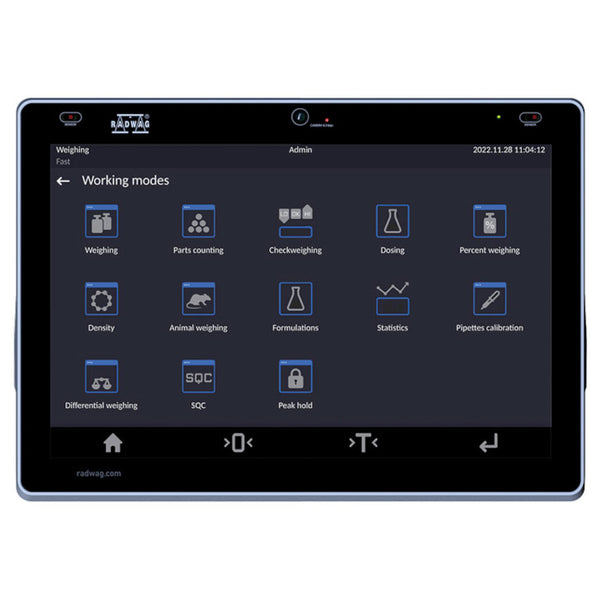

10-Inch Display
Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.
Uncompromising User Verification
For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.
Ambient Light – An Innovative Way for the Balance to Communicate With the User
The light colour will tell you about status, process results, procedures, or alerts.
Hotspot
Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.
RFID
ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.
Live Note – Note Down Your Conclusions
It’s the first time you can add a text memo to a measurement series or procedure report. These can be, for example, assumptions, reminders or questions that can be returned to at any time.

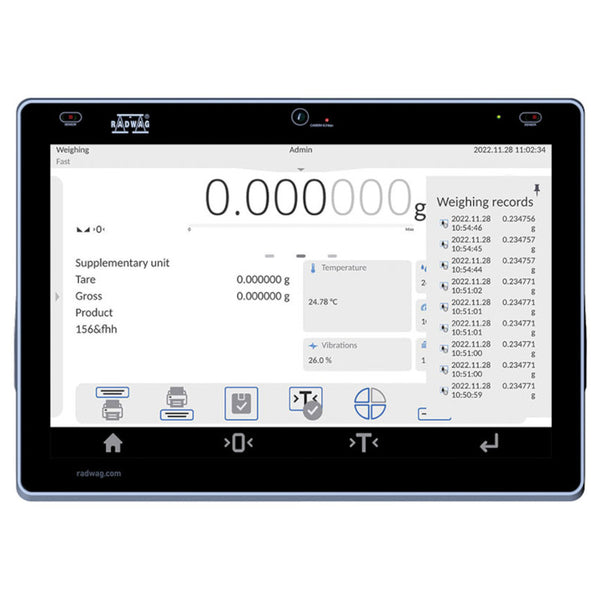

Handy Library
This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.
Widgets
Prepared to display what you need most at any given moment.
Automatic Leveling of the Balance ReflexLEVEL System
Instead of manually leveling your scale - level it automatically. The ReflexLEVEL System saves you time and gives you maximum precision in your measurements.
Smart Min Weight
The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.
21 CFR Part 11
Do you work in the pharmaceutical industry? Do you need a digital signature?
We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.
– Full data security
– Electronic signatures
– Validations
– Electronic records
– Audit trails
– Electronic signatures
– Validations
– Electronic records
– Audit trails
Modbus TCP/IP
is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.
A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.
Two-point adjustment
Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.
Datasheet
| Metrological Parameters | |
|---|---|
| Maximum Capacity [Max] | 6.1 g |
| Minimum Load | 0.01 mg |
| Readability [d] | 0.1 µg |
| Verification Unit [e] | 1 mg |
| Tare Range | -6.1 g |
| Standard Repeatability [5% Max] | 0.2 µg |
| Standard Repeatability [Max] | 0.45 µg |
| Standard Minimum Weight (USP) | 0.4 mg |
| Standard Minimum Weight (U=1%, k=2) | 0.04 mg |
| Permissible Repeatability [5% Max] | 0.4 µg |
| Permissible Repeatability [Max] | 0.8 µg |
| Linearity | ±1.5 µg |
| Eccentric Load Deviation | 1.5 µg |
| Sensitivity Time Drift | 1×10⁻⁶ / Year × Rt |
| Stabilization Time | 10 – 20 s |
| Adjustment | Internal (automatic) |
| OIML Class | I |
| Physical Parameters | |
| Leveling System | Automatic – Reflex Level System |
| Display | 10″ Graphic Colour Touchscreen |
| Weighing Pan Dimensions | ø16 mm |
| Weighing Chamber Dimensions | ø90×90 mm |
| Anti-Draft Chamber Dimensions | 560×350×252 mm |
| Delivery Components | Ultra-microbalance, terminal, weighing pan, osłona weighing pans, glass lid, power supply, anti-draft shield, pincette, brush, fabric dust cover |
| Packaging Dimensions | 750×492×595 mm |
| Net Weight | 9.1 kg |
| Gross Weight | 16.5 kg |
| Protection Class | IP 43 |
| Communication Interface | |
| Interfaces | 2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi®, Hotspot |
| Electrical Parameters | |
| Power Supply (Adapter) | 100–240V AC 50/60Hz 1A; 15V DC 2.4A |
| Balance Supply | 12–15V DC 1.4A max* |
| Environmental Conditions | |
| Operating Temperature | +10 – +40 °C |
| Operating Temperature Change Rate | ±0.3 °C / 1 h (±1 °C / 8 h) |
| Relative Humidity | 40% – 80% |
| Relative Humidity Change Rate | ±1% / h (±4% / 8 h) |
Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
Repeatability is expressed as a standard deviation from 10 cycles of mass standard weighing.
Stabilization time dependson the ambient conditions and the dynamics of weighing pan loading; specified for FAST profile.
* The power supply can be connected to the socket on the back of the balance housing or to the terminal.
Stabilization time dependson the ambient conditions and the dynamics of weighing pan loading; specified for FAST profile.
* The power supply can be connected to the socket on the back of the balance housing or to the terminal.
