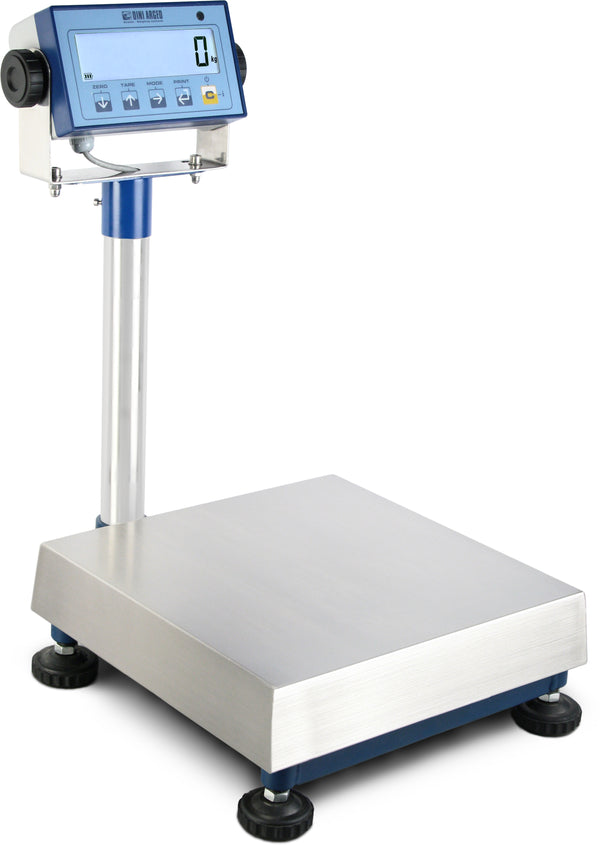

"WALL-E" SERIES BENCH AND FLOOR SCALES

"WALL-E" SERIES BENCH AND FLOOR SCALES
"WALL-E" SERIES BENCH AND FLOOR SCALES

Gravitation Ltd

€375,00
SKU: WALL-E SERIES-1

Click here to view our Specification PDF








 TECHNICAL FEATURES



    • Weight indicator with ABS case, 25mm backlit LCD display with 6 high contrast digits and icons for showing the active functions. 5-key functional waterproof keypad.

    • Functioning with an aluminium load cell, 3000d approved with IP65 protection degree.

    • Steel tubular structure, oven-fire painted blue, with adjustable resting feet and level.

    • Stainless steel loading surface, size: see the table.

    • Fitted with fixing bracket with adjustable inclination and support column, height:
      - 350 mm in the "T" models;
      - 500 mm in the "Q" models;
      - 700 mm in the "X" and "E" models.

    • Digital calibration and Set-Up from keypad or from PC through DINITOOLS.

    • Power supply: 4 AA batteries or 230Vac power supplier.



























 SELECTABLE FUNCTIONS



    • x 10 high resolution visualisation

    • Net/Gross or lb/kg conversion

    • Weights totalisation

    • Formulation

    • +/- Check

    • Percentage weigh

    • Alibi, for approved weight transmission (optional)

    • Counting



























 I/O SECTION



    • RS232/RS485 port for connection to PC, PLC or repeater.

    • RS232 port configurable for connection to printer.

    • IR input for managing the remote control.



























 OPTIONS ONLY AVAILABLE AT TIME OF ORDER



    • CE-M approval (OIML R-76 / EN 45501).

    • Real time clock.

    • Alibi Memory.

    • Infrared remote control.

    • USB interface.
