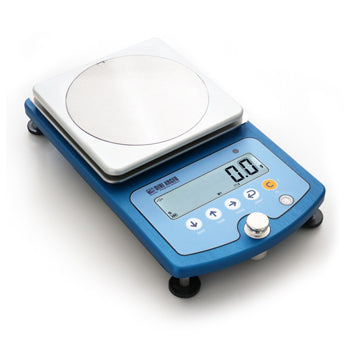

WLB series compact bench scale

WLB series compact bench scale
WLB series compact bench scale WLB series compact bench scale WLB series compact bench scale WLB series compact bench scale WLB series compact bench scale

Gravitation Ltd

€690,00
SKU: WLB Group

Click here to view a specification PDF








 MAIN FEATURES



    • Special body in anodised alloy, resistant and easy to clean.

    • Loading surface in anodised alloy, washable and inspectionable.

    • Safety limit switch and protection plate against side strikes.

    • Aluminium load cell, IP68.

    • Extractable calibration weight, useful for calibration control.

    • Integrated weight indicator, with backlit LCD display of 25mm, waterproof keypad and multifunctional programme.

    • Non-slip adjustable feet.

    • Integrated level.

    • IP68 protection degree.

    • Serial port RS232 for connection to Pc or printer.

    • Power supply through built-in rechargeable battery or external power supply/battery charger with IP68 connector.

    • Dimensions and weight:
      - Scale: (lxwxh) 360x210x75mm - 5,3kg.
      - Packaging: (lxwxh) 500x300x150mm - 6,6kg.



























 SELECTABLE FUNCTIONING MODES



    • Through the specific key, the desired functioning mode can be chosen:


    • SELECTABLE FUNCTIONS:
      - x 10 high resolution visualisation.
      - Precision weighing with recalibration through standard weight (for the company internal use).
      - Switch Net/Gross
      - lb to kg or free factor conversion.
      - Weight totalisation.
      - Formulation.
      - +/- check.
      - Percentage weigh.
      - Approved weight transmission to PC/PLC or printer.
      - Pieces counting.
      - Input/Output.
      - Hold and Peak.


    • OTHER STANDARD FUNCTIONS:
      Zeroing, Tare, preset Tare, automatic Tare, Auto switch off.
