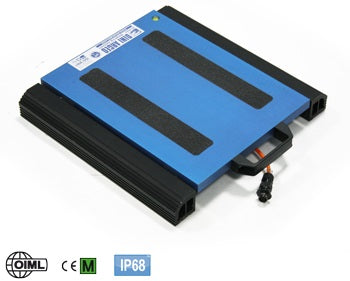

"WWSB" WHEEL WEIGHING PLATFORMS

Gravitation Ltd

€700,00 €830,00
SKU: WWSB Series-1

Click here to view our Specification PDF







FEATURES



    • Platform dimensions: 400x410mm. Height 58mm. Weight approximately 14,5kg.

    • Loading surface: 400x300mm.

    • Very handy.

    • Sturdy structure, made with special aluminium, which guarantees lightness and makes these suitable also for harsh working conditions.

    • Cable with quick connector, platform side.

    • 10m cable for connecting the platform to the indicator, complete of connector.

    • IP65 aluminium load cells.

    • IP68 stainless steel load cells, in the WWSB versions with 6t and 8t capacity.

    • Hermetic junction box with IP68 protection degree.

    • Special vulcanised nonslip rubber applied under the platform, for good grip on all types of surfaces.

    • Extremely simple and reliable connection of the scale to the weight indicator.

    • Fitted with IP68 protection, with IP68 connector and PUR cable.

    • The WWS platforms are patented; the number is 1.342.302.

    • Availables in legal for trade approved version.

    • Availables in high resolution version.

    • Availables upon price estimate in Atex version for 1&21 e 2&22 zones.





























 NOTES ABOUT THE LEGAL FOR TRADE APPROVED VERSIONS



    • The platforms are for legal for trade use:
      - In the single-platform systems, not used to weigh vehicles.
      - In the wheel weighing systems in which the number of platforms is equal to the number of vehicle wheels.
      - In the axle weighing systems composed of one or more multiples of WWS platforms, except possible limitations of use for some European States.


    • The CE-M legal for trade divisions indicated in the "version" table are available with ECEM option. ECEM option is needed for each legal for trade platform of the system.


    • Legal for trade systems with more than one WWS, are fitted with the approval of the weight sum and related division:
      Exemple for a 4 pads system
      Single CE-M Platform: Max=1500kg and e=0,5kg
      CE-M SUM: Max=6000kg and e=2kg
