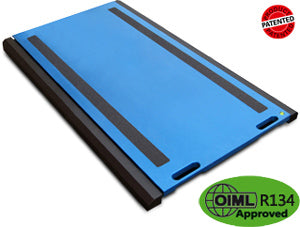

Platform dimensions: 900x611mm. Height 58mm. Weight approximately 41,5kg.
Loading surface: 900x500mm.
Fitted with wheels for transporting the platform.
Sturdy structure, made in special aluminium, which guarantees lightness and makes these suitable also for harsh working conditions.
Cable with quick connector, platform side.
10 m cable for connecting platform to indicator, complete of connectors.
IP68 stainless steel load cells.
Hermetic junction box with IP68 protection degree.
Special vulcanised nonslip rubber applied under the platform for good grip on all surfaces.
Extremely simple and reliable connection of the scale to the weight indicator.
Fitted with IP68 protection, with IP68 connector and PUR cable.
The WWS platforms are patented; the number is 1.342.302.
Availables in legal for trade approved version.
Availables in high resolution version.
Availables upon price estimate in Atex version for 1&21 e 2&22 zones.
NOTES ABOUT THE LEGAL FOR TRADE APPROVED VERSIONS
The platforms are for legal for trade use: - In the single-platform systems, not used to weigh vehicles. - In the wheel weighing systems in which the number of platforms is equal to the number of vehicle wheels. - In the axle weighing systems composed of one or more multiples of WWS platforms, except possible limitations of use for some European States.
The axle weighing systems with 2 WWS platforms and a 3590E "AF09" weight indicator are OIML R134 certified for the dynamic vehicle weighing, according to the legal standards in force in the Country of use.
The CE-M legal for trade divisions indicated in the "version" table are available with ECEM option. ECEM option is needed for each legal for trade platform of the system.
Legal for trade systems with more than one WWS, are fitted with the approval of the weight sum and related division: Exemple for a 4 pads system Single CE-M Platform: Max=1500kg and e=0,5kg CE-M SUM: Max=6000kg and e=2kg
