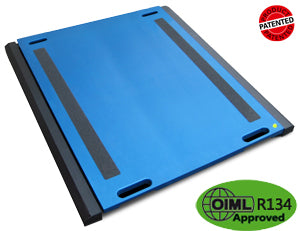

"WWSF" series 900 x 700 mm WHEEL WEIGHING PLATFORMS

"WWSF" series 900 x 700 mm WHEEL WEIGHING PLATFORMS

Gravitation Ltd SKU: WWSF Series-1

€2.350,00

Pay in 4 interest-free installments for orders over €50.00 with
Collection Available
All equipment can be collected in person from our HQ
Get Directions
Description Features Delivery Returns
Click here to view our Specification PDF







 FEATURES



    • Platform dimensions: 900x811mm. Height 69mm. Weight approximately 67kg.

    • Loading surface: 900x700mm.

    • Fitted with double handles on both sides for easing the transport.

    • Sturdy structure, made in special aluminium, which guarantees lightness and makes these suitable also for harsh working conditions.

    • Cable with quick connector, platform side.

    • 10 m cable for connecting platform to indicator, complete of connectors.

    • IP68 stainless steel load cells.

    • Hermetic junction box with IP68 protection degree.

    • Special vulcanised nonslip rubber applied under the platform for good grip on all surfaces.

    • Extremely simple and reliable connection of the scale to the weight indicator.

    • Fitted with IP68 protection, with IP68 connector and PUR cable.

    • The WWS platforms are patented; the number is 1.342.302.

    • Availables in legal for trade approved version.

    • Availables in high resolution version.

    • Availables upon price estimate in Atex version for 1&21 e 2&22 zones.



























 NOTES ON THE CE-M APPROVED VERSIONS



    • The platforms are for legal for trade use:
      - In the single-platform systems, not used to weigh vehicles.
      - In the wheel weighing systems in which the number of platforms is equal to the number of vehicle wheels.
      - In the axle weighing systems composed of one or more multiples of WWS platforms, except possible limitations of use for some European States.


    • The axle weighing systems with 2 WWS platforms and a 3590E "AF09" weight indicator are OIML R134 certified for the dynamic vehicle weighing, according to the legal standards in force in the Country of use.


    • The CE-M legal for trade divisions indicated in the "version" table are available with ECEM option. ECEM option is needed for each legal for trade platform of the system.


    • Legal for trade systems with more than one WWS, are fitted with the approval of the weight sum and related division:
      Exemple for a 4 pads system
      Single CE-M Platform: Max=1500kg and e=0,5kg
      CE-M SUM: Max=6000kg and e=2kg
