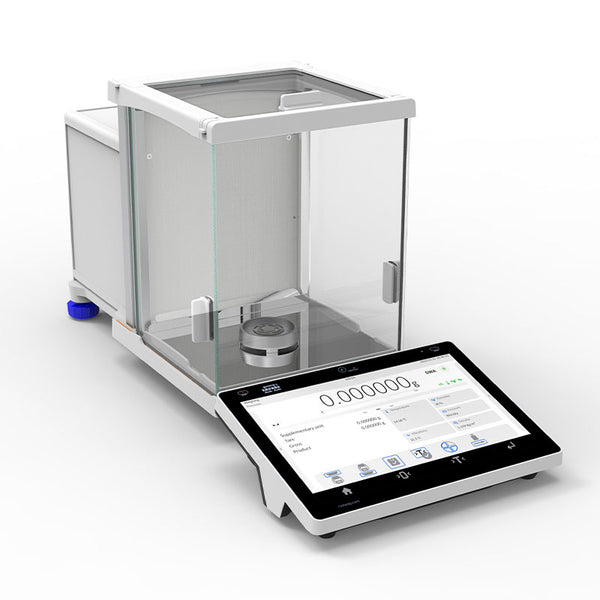

XA 53.5Y.M Microbalance
The XA 5Y.M Microbalances are a popular choice for medical, pharmaceutical, chemical, biological, physical and other research laboratories for good reason. The performance of the balances in this series is stunning: impressive repeatability and readability from 1 µg. XA 5Y.M Microbalances are equipped with a 190 x 173 x 222 mm weighing chamber and a 30 mm diameter pan.
What Makes XA 5Y.M Microbalances the Top Choice?
XA 5Y.M.A Microbalances have a manually opened weighing chamber and use a semi-automatic levelling system. Opening the chamber manually provides full control over access to the sample. An important advantage of these series balances is that the user can disassemble the chamber quickly, easily and without tools, which greatly simplifies cleaning.
Semi-automatic levelling, the so-called LevelSENSING System, prompts the user in which direction the balance should be levelled. The system guides the user step by step, which minimizes the risk of errors during levelling and significantly reduces the time of this process.
Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?
If so, learn about the functionality of the ELLIPSIS series of balances:
Digital Weighing Auditor

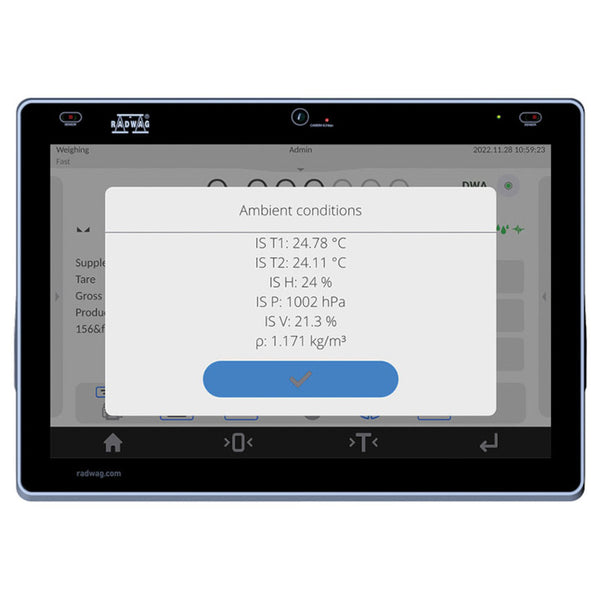

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

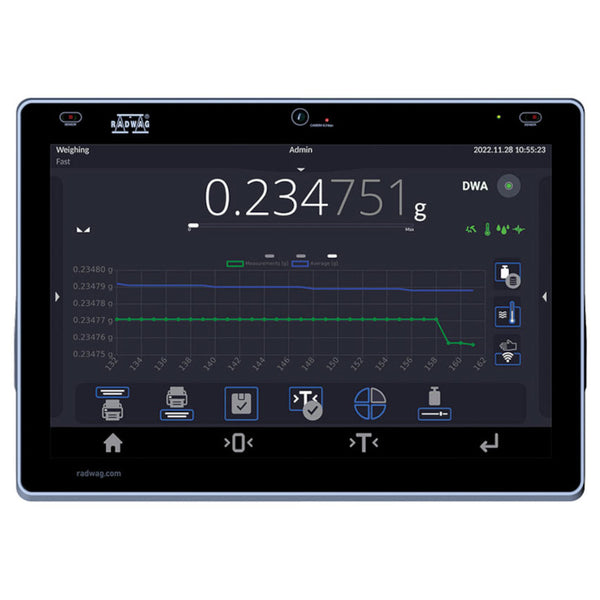

10-Inch Display

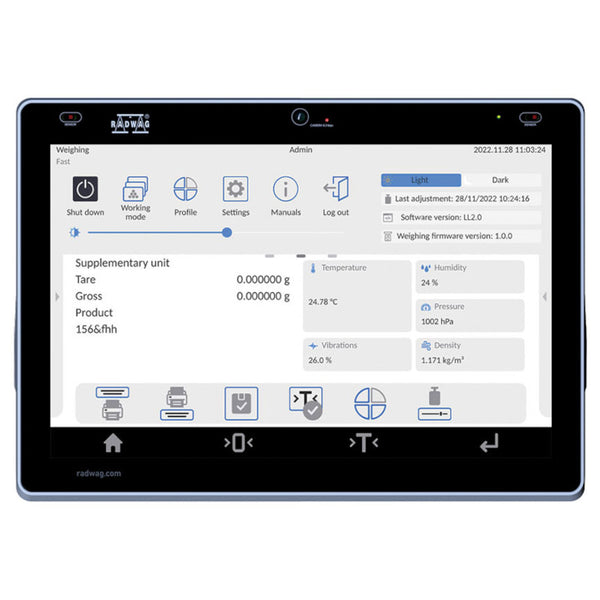

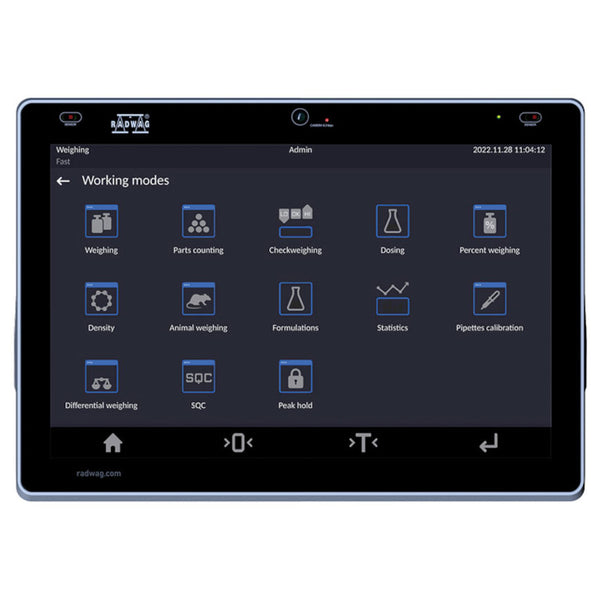

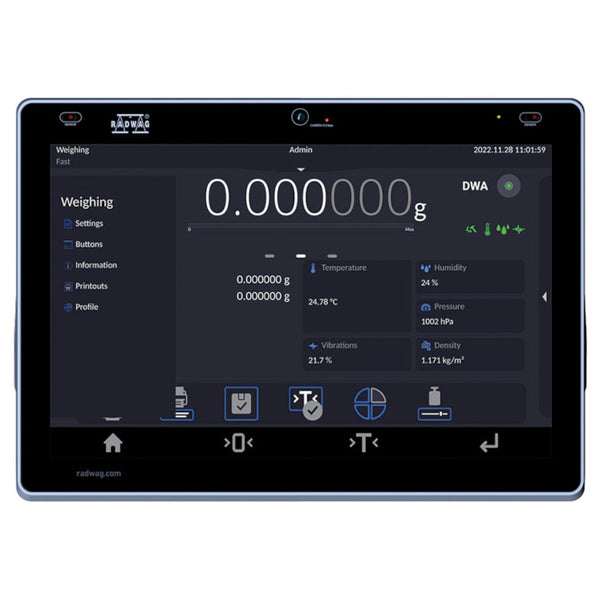

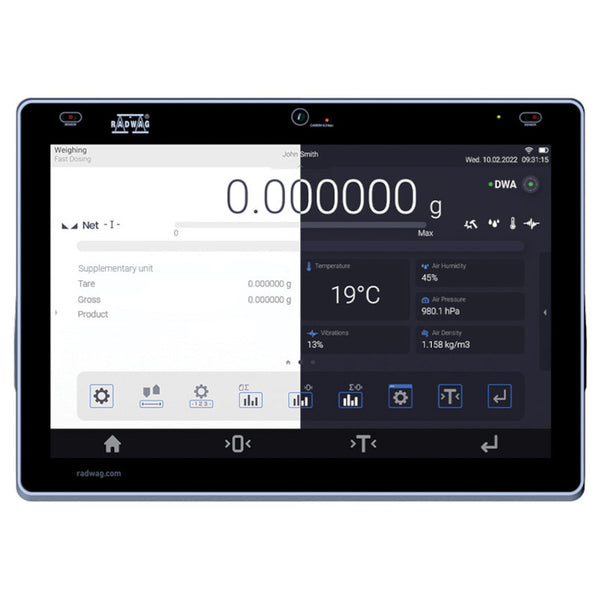

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.
Uncompromising User Verification
For the first time ever, the balance will verify the user using a password,
RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.
RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.
Ambient Light – An Innovative Way for the Balance to Communicate With the User
The light colour will tell you about status, process results, procedures, or alerts.
Hotspot
Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.
RFID
ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.
Live Note – Note Down Your Conclusions
It’s the first time you can add a text memo to a measurement series or procedure report. These can be, for example, assumptions, reminders or questions that can be returned to at any time.
Handy Library

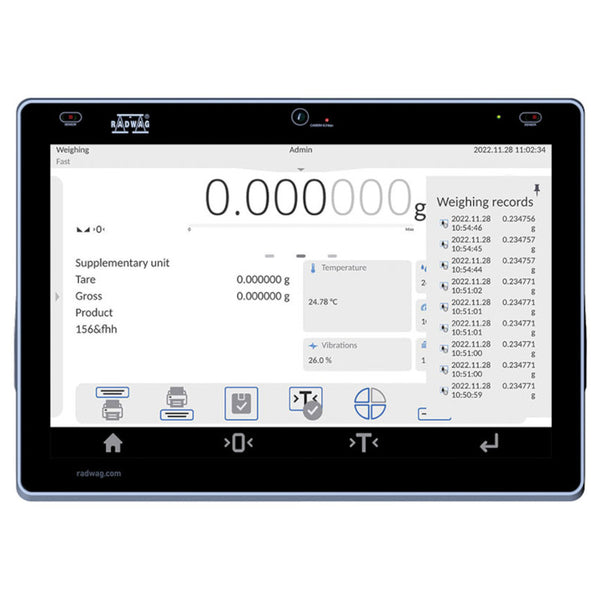

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.
Widgets
Prepared to display what you need most at any given moment.
21 CFR Part 11
Do you work in the pharmaceutical industry? Do you need a digital signature?
We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.
We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.
– Full data security
– Electronic signatures
– Validations
– Electronic records
– Audit trails
– Electronic signatures
– Validations
– Electronic records
– Audit trails
Smart Min Weight
The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.
Modbus TCP/IP
is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.
A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.
Two-point adjustment
Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.
Datasheet
| Metrological Parameters | |
|---|---|
| Maximum Capacity [Max] | 53 g |
| Minimum Load | 0.1 mg |
| Readability [d] | 1 µg |
| Verification Unit [e] | 1 mg |
| Tare Range | -53 g |
| Standard Repeatability [5% Max] | 1.5 µg |
| Standard Repeatability [Max] | 6 µg |
| Standard Minimum Weight (USP) | 3 mg |
| Standard Minimum Weight (U=1%, k=2) | 0.3 mg |
| Permissible Repeatability [5% Max] | 2.4 µg |
| Permissible Repeatability [Max] | 8 µg |
| Linearity | ±20 µg |
| Eccentric Load Deviation | 20 µg |
| Sensitivity Time Drift | 1×10⁻⁶ / Year × Rt |
| Stabilization Time | ~ 3.5 s |
| Adjustment | Internal (automatic) |
| OIML Class | I |
| Physical Parameters | |
| Leveling System | Semi-automatic – LevelSENSING |
| Display | 10″ Graphic Colour Touchscreen |
| Weighing Chamber Doors | Manual |
| Weighing Pan Dimensions | ø30 mm |
| Weighing Chamber Dimensions | 168×160×228 mm |

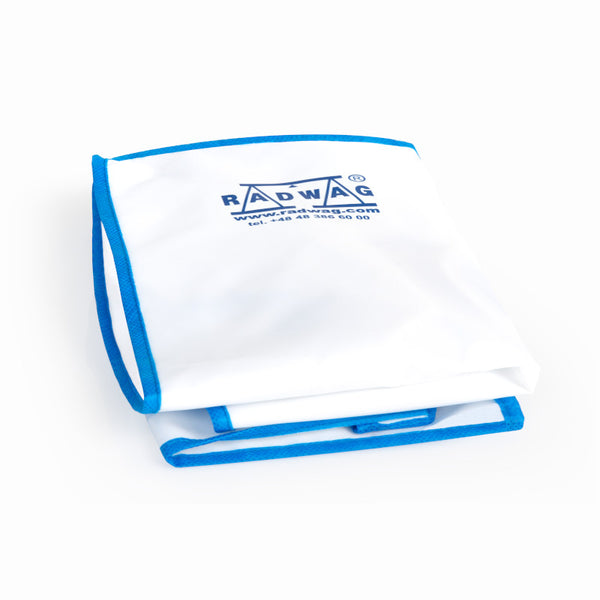

| Delivery Components | Microbalance, weighing pan, osłona weighing pans, bottom cover, power supply, brush, fabric dust cover |
| Packaging Dimensions | 750×492×595 mm |
| Net Weight | 9.8 kg |
| Gross Weight | 14.3 kg |
| Protection Class | IP 43 |
| Communication Interface | |
| Interfaces | 2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi®, Hotspot |
| Electrical Parameters | |
| Power Supply (Adapter) | 100–240V AC 50/60Hz 1A; 15V DC 2.4A |
| Balance Supply | 12–15V DC 1.4A max* |
| Environmental Conditions | |
| Operating Temperature | +10 – +40 °C |
| Operating Temperature Change Rate | ±0.3 °C / 1 h (±1 °C / 8 h) |
| Relative Humidity | 40% – 80% |
| Relative Humidity Change Rate | ±1% / h (±4% / 8 h) |
Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
Repeatability is expressed as a standard deviation from 10 cycles of mass standard weighing.
Stabilization time dependson the ambient conditions and the dynamics of weighing pan loading; specified for FAST profile.
* The power supply can be connected to the socket on the back of the balance housing or to the terminal.
