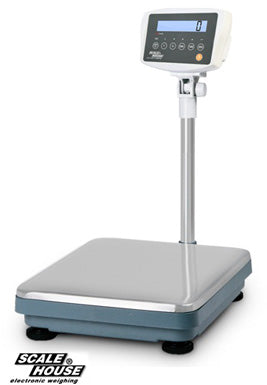

AFWC AND AFWD SERIES "BENCH-FLOOR" MULTIFUNCTION SCALE

AFWC AND AFWD SERIES "BENCH-FLOOR" MULTIFUNCTION SCALE
AFWC AND AFWD SERIES "BENCH-FLOOR" MULTIFUNCTION SCALE

Gravitation Ltd

€299,00
SKU: AFWC AND AFWD SERIES Group-1

Click here to view our Specification PDF








 TECHNICAL FEATURES



    • Backlit LCD display with 6 digits 24mm high, easily visible from all angles with adjustable inclination.

    • Membrane waterproof keypad with 7 keys anc acoustic feedback.

    • ABS case and indicator support column.

    • Stainless steel plate, size:
      - C model 350x450mm;
      - D model 420x520mm.

    • Built-in rechargeable battery (about 70h battery life) and 230Vac power adapter.

    • Overall height from ground with indicator and column:
      - C model 860mm;
      - D model 920mm.

    • Packaging:
      - C model: 780 x 500 x 220 mm size - approximate weight of 15,5kg;
      - D model: 970 x 600 x 230 mm size - approximate weight of 17kg.

    • Master Pack:
      - C model: 2 x (780 x 500 x 220)mm size - 2 x approximate weight of 15,5kg;
      - D model: 2 x (970 x 600 x 230)mm size - 2 x approximate weight of 17kg.

    • Upon request:
      - ACCREDIA calibration with issuing of relative certificate;
      - 3000e CE-M approval.



























 FUNCTIONS



    • counting;

    • weight check, with 2 thresholds and acoustic alarm;

    • weight totalisation, in loading or in unloading;

    • unit conversion: kg, g, lb, oz;

    • weighing filter selection;

    • setting range of auto-zero at the switch-on;

    • zeroing;

    • zero tracking;

    • semi-automatic tare;

    • digital calibration;

    • backlight command;

    • low battery warning.





















COUNTING FEATURES



    • Internal sensitivity, minimum recommended APW, and minimum sampling weight:
































      Model  AFWC30   AFWC60
       AFWD60       		  AFWC150
       AFWD150       		  AFWD300
      Internal sensitivity g

      0,1

      0,2

      0,5

      1
      Min. recommended APW g

      0,5

      1

      2

      5
      Min. sampling weight g

      200

      400

      1000

      2000
