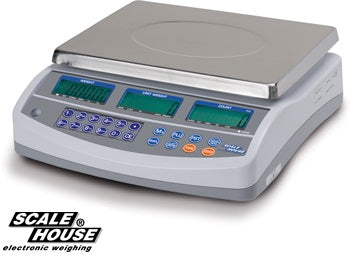

BCSD SERIES "DUAL LOADING" COUNTING SCALE

Gravitation Ltd

€329,00
SKU: BCSD SERIES Group-1

Click here to view our Specification PDF








 TECHNICAL FEATURES



    • 3 backlit LCD displays with 6 digits 20mm high for simultaneously viewing weight, average piece weight, and number of pieces.

    • Membrane waterproof, alphanumeric and functional keypad with 20 keys and acoustic feedback.

    • Stainless steel plate, 230x300mm size.

    • Level and adjustable feet.

    • Built-in rechargeable battery (about 70h battery life) and 230Vac power adapter.

    • RS232/C port for connection to PC or printer.

    • Configurable input for connection to second counting platform, with completely programmable capacity and division.

    • Packaging: 440x370x220mm size - approximate weight of 5,5kg.

    • Master Pack: 2 x (440x370x220)mm size - 2 x approximate weight of 5,5kg.

    • Upon request: ACCREDIA calibration with issuing of relative certificate.





























 FUNCTIONS



    • counting:
      - entry of sampling items,
      - entry of Average Piece Weight,
      - optimisation of the A.P.W.,
      - indication of insufficient A.P.W./sampling quantity,
      - 100 PLU memory, each with: alphanumeric description of 12 characters, tare, A.P.W.;

    • weight or piece quantity check, with 2 thresholds and acoustic alarm;

    • weight and pieces' totalisation;

    • unit of measure conversion: kg, lb;

    • zeroing;

    • zero tracking;

    • semi-automatic tare or enterable from keypad;

    • digital calibration;

    • auto switch-off;

    • backlight command;

    • low battery warning.













Example of application with 2 platforms

NOTE: in order to realize this configuration, you have to order one SHCAL calibration service for the reference scale and one for the counting scale.




























 COUNTING FEATURES



    • Internal sensitivity and minimum recommended A.P.W.:






















      Model  BCSD6   BCSD15   BCSD30
      Internal sensitivity g

      0,02



      0,05



      0,1


      Min. recommended A.P.W. g

      0,1



      0,2



      0,5
