TW SERIES OVERHEAD MONORAIL WEIGHING SCALES

Gravitation Ltd SKU: TW SERIES Group-1

€1.000,00

Pay in 4 interest-free installments for orders over €50.00 with Learn More
Specification PDF
View Specification Sheet
Free Delivery on Orders Over €100
Ships by
Collection Available
All equipment can be collected in person from our HQ
  • Description
  • Features
  • Delivery
Click here to view our Specification PDF







MAIN FEATURES



    • Functions with 1 aluminium load cell with IP66 protection degree (TWSI model) or with 3 STAINLESS STEEL load cells with IP68 protection degree (TWI model), approved according to OIMLR60 C3 standards (3000 + 3000 divisions).

    • AISI304 STAINLESS STEEL tubular structure, fitted with accessories for fastening to the beam and threaded rods for fastening to the customer's track section.

    • Maximum length of the customer's track section:
      - 300 mm for the ETWSI models
      - 600 mm for the ETWI models.

    • Up to 15 Vdc power supply.

    • Hermetic junction box and shielded 10m long 6-pin cable fitted with connectors for connection to the weight indicator.





























 OPTIONS ONLY AVAILABLE AT TIME OF ORDER



    • Connection to the indicator and calibration with CE-M 3000e single range or 3000e+3000e dual range approval (with our indicators).

    • Models with special sizes and capacities (ask for estimate).

    • Possible adaptations with customer’s track section (to be supplied per account of manufacture), which will be quantified upon job card cost account.

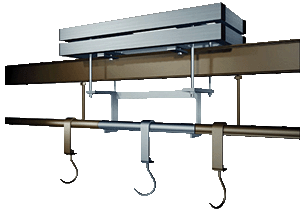

TWI series overhead monorail weighing scale (application example)

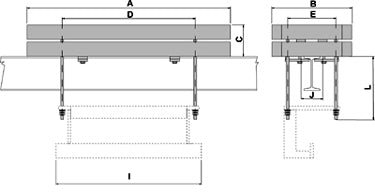

  A B C D E I J L
TWI 840 330 135 550 200 600 90 195
TWSI 420 285 115 300 210 300 90 195

dimensions in mm
